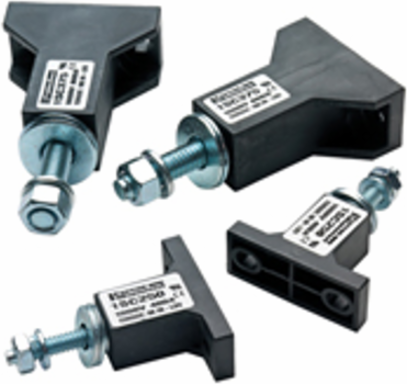

Mersen 1MSC102 1MSC Modular Semiconductor Fuse Block, 600 VAC, 200 kA SCCR, Phenolic Material
- MPN: 1MSC102
- UPC: 782001267476
- PPN: FER-1MSC102
CAD
$262.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. All modular blocks are supplied in pairs but need to be ordered as two items to suit one fuse. Mounting hardware is supplied with the blocks
Features
- Heat dissipating integral box connector versions
- Accommodates a large range of semiconductor fuses
- Modular two-piece design
- Stud versions
- Rugged phenolic insulators
- Compact footprint
Specifications
Product Details
- CE conformity
- Consult Technical Services
- UL Certification
- E171957 IZLT2.E171957
- ROHS Compliant
- Consult Technical Services
- AC Voltage
- 600 VAC
- Connection Terminal Type
- Box
- DC Voltage
- 600 VDC
- Standards
- UL Recognized Component to standard 4248-1, File E171957
MountingScrew Mount
Body MaterialPhenolic
Lead FreeConsult Technical Services
SCCR200 kA
Materials ContactAluminum
Number of Poles1
Wiring RangeAl/Cu (2) 250kcmil - #6 AWG, Al/Cu 2/0 - #6 AWG
