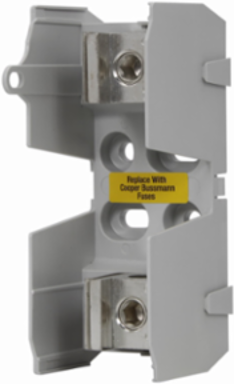

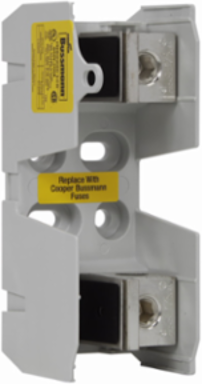

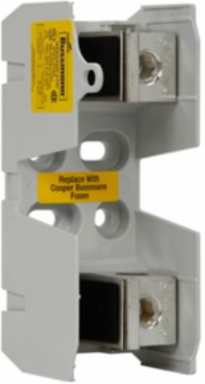

Edison JM60200-1CR Eaton Bussmann series JM modular fuse block, 600V, 110-200A, Knife Blade End X Knife Blade End, Single-pole

Description

Features

• The Bussmann JM60200-1CR is a heavy-duty, 1-Pole Class J fuse block specifically designed to accommodate fuses rated from 110 to 200 Amps. It is the standard mounting solution for high-amperage protection in Canadian industrial power distribution, ensuring a secure, low-resistance connection for your primary branch circuits.
• Designed for high-current applications, the JM60200-1CR is built for bolt-down mounting on a sub-panel or mounting plate. Its rugged, modular design allows you to gang multiple single-pole blocks together to create custom 2-pole or 3-phase configurations, making it a highly adaptable component for custom Canadian equipment manufacturing.
• While the base block has exposed terminals for maximum heat dissipation, it is compatible with CVR-J-60200 specialized covers. Adding these covers transforms the block into a "finger-safe" assembly, helping your facility comply with CSA Z462 workplace electrical safety standards by reducing the risk of accidental contact with 600V live parts.
• Constructed from high-grade, flame-retardant thermoplastic, this fuse block is engineered to withstand the intense thermal and mechanical stresses of a high-amperage fault. The tin-plated connectors resist corrosion, ensuring long-term reliability in the varying humidity and temperature conditions found in Canadian industrial settings.

Documentation & Downloads

Specifications
