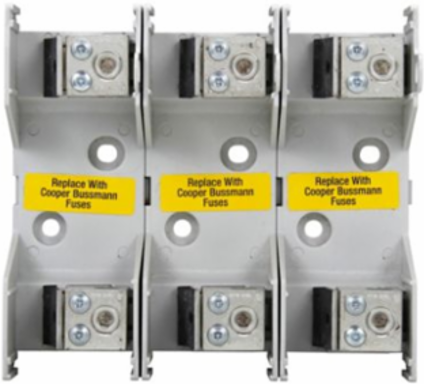

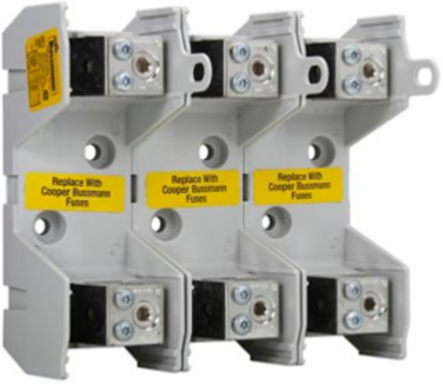

Edison JM60100-3CR Eaton Bussmann series JM modular fuse block, 600V, 70-100A, Knife Blade End X Knife Blade End, Three-pole

Description

Features

• The Bussmann JM60100-3CR is a heavy-duty 3-pole Class J fuse block specifically designed to house 70 to 100 Amp fuses. Its standardized footprint ensures a secure mechanical and electrical fit for any 600V Class J fuse, making it the primary interface for protecting 3-phase motor feeders and power distribution branches in Canadian industrial environments.
• This modular block features a flexible mounting design that supports both traditional screw-down plate mounting and 35mm DIN-rail installation (using specialized adapters). This versatility allows Canadian panel builders to maintain high-density layouts in compact enclosures while ensuring the fuses remain easily accessible for maintenance and inspection.
• Equipped with high-performance box lug terminals, this block is engineered to accept a wide range of conductors from #1/0 to #14 AWG copper or aluminum wire. The deep wire chambers and pressure-plate terminations provide a gas-tight, vibration-resistant connection, which is essential for the high-torque environments of mining, forestry, and heavy manufacturing.
• To enhance workplace safety and meet CSA Z462 workplace electrical safety standards, this block features an IP20-rated, finger-safe design when used with the appropriate optional covers. This protection level prevents accidental contact with live terminals, significantly reducing the risk of shock during routine panel inspections or troubleshooting.
