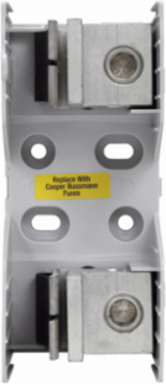

Edison JM60400-1CR Eaton Bussmann series JM modular fuse block, 600V, 225-400A, Knife Blade End X Knife Blade End, Single-pole
- MPN: JM60400-1CR
- UPC: 051712387033
- PPN: BUS-JM60400-1CR
CAD
$428.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton Bussmann series JM modular fuse block, 600V, 225-400A, Knife Blade End X Knife Blade End, Single-pole
Features
- Featuring a versatile, single-pole modular footprint, the JM60400-1CR allows for easy gang-mounting to create multi-pole configurations. This flexibility enables industrial engineers to optimize panel space and customize layouts for specific motor control centers or transformer protection without the need for multiple, bulky SKU inventories.
- Specifically engineered to house 225A to 400A Class J fuses, this holder offers a compact footprint with high interrupt ratings up to 200kA. By utilizing the space-saving dimensions of Class J fuses, you achieve maximum short-circuit current rating (SCCR) protection for sensitive downstream components while occupying significantly less enclosure volume than Class R or H alternatives.
- Equipped with high-conductivity Al/Cu box lug connectors, this holder accepts a wide range of wire sizes (typically up to 600kcmil) to accommodate heavy-duty industrial feeders. The robust terminal design ensures a low-resistance connection that minimizes heat generation, reducing the risk of thermal fatigue and ensuring long-term reliability in high-amperage power circuits.
- Constructed with reinforced thermoplastic and integrated safety barriers, the block provides high dielectric strength and physical isolation between phases. The open-front design facilitates rapid fuse replacement and allows for easy access during infrared thermography scans, helping maintenance teams identify potential hotspots before they lead to catastrophic equipment failure.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V
- Short-circuit Rating
- 200 kA
- Torque
- 57 N m (500 lb-in)
- Number of Poles
- Single-pole
- Conductor Size Range
- 600kcmil
- Cover Temperature Range
- Non-indicating -40 C to +120 C, Indicating -20 C to +90 C
- Weight
- 2.475 lb
- Mounting
- Panel mount
Amperage225-400 A
Interrupt Rating200 kAIC
ConnectionKnife blade end x knife blade end
ClassClass J
Operating Temperature Range-40 C to +120 C (Blocks)
DimensionsApprox. 6.9 in W x 8.0 in H x 7.3 in D (176 mm x 203 mm x 186 mm)
MaterialThermoplastic base, Tin-plated copper brass terminals (30/60A), Tin-plated aluminum terminals (box lug), Thermoplastic covers
ComplianceUL Listed, CSA Certified, CE, RoHS Compliant
