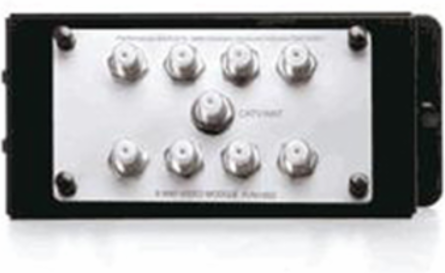

On-Q VM1002 1X8 Enhanced Passive Video Splitter/Combiner
- MPN: VM1002
- UPC: 804428021629
- PPN: P-S-VM1002
CAD
$84.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High-performance splitter designed for digital cable, On Demand, Pay-per-View and high-speed cable Internet.
Features
- Ideal for use with digital cable TV or antenna.
- Bracket included.
- DC passing between all ports.
- Uses standard F type connectors.
- Handles up to eight outputs and one input.
- 1 GHz Bandwidth.
Specifications
Technical Information
| Bracket Required | 101370-01 included |
|---|---|
| Frequency | 5-1000 MHz |
| Mounting | By bracket in enclosure |
| Operating Temperature (Celsius) | -40°C to 60°C |
| Shape | Rectangular |
| Typical Return Loss | 23.1 dB |
| Surge Suppression | 6 kV Ring Wave Surge per IEEE C62.41 Category A3 Compliant |
| Connection Method | F |
|---|---|
| Material | 18 Gauge CRS |
| OhmValue | 75 |
| Product Fits Into | On-Q Enclosure |
| Typical Insertion Loss | 11.1 dB |
| Number Of Receptacles | 8 |
Dimensions
| Depth (Metric) | 4.7 cm |
|---|---|
| Length (Metric) | 16.3 cm |
| Width (Metric) | 9.1 cm |
| Depth (US) | 1.85" |
|---|---|
| Length (US) | 6.42" |
| Width (US) | 3.6 in |
Construction Information

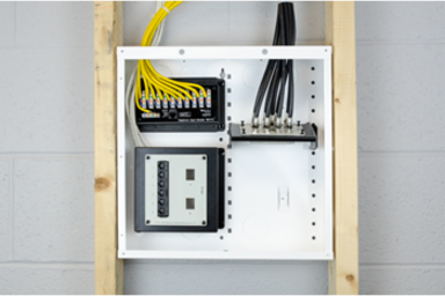

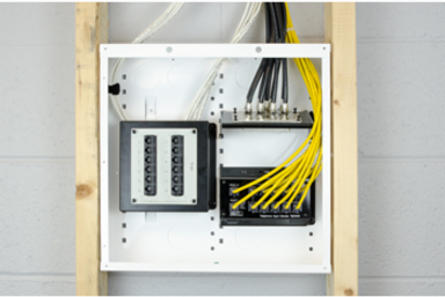

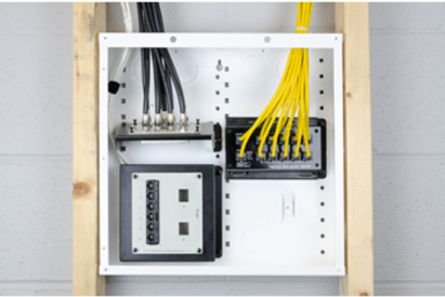

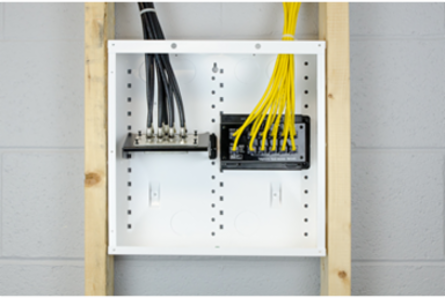

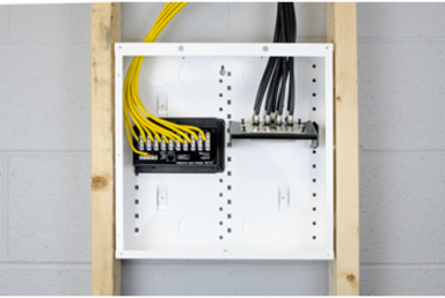

| Installation Location | Enclosure |
|---|
General Info
| Color | Silver |
|---|---|
| Footprint | Single Bay |
| Type | Passive Splitter |
| Surge Protected | Yes |
| Finish | Powder Coat |
|---|---|
| Connection Type | F Connector |
| Input Plug Type | F Connector |
Listing Agencies/Third Party Certifications
| UN SPSC | 32101529 |
|---|
Assembly/Installation Information
| Mounting Hardware Included | Yes |
|---|
