Tripp Lite PDU2430 2.9kW Single-Phase 120V Basic PDU, 24 NEMA 5-15R Outlets, NEMA L5-30P Input, 15 ft. Cord, 1U Rack-Mount

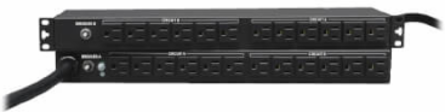

2.9kW Single-Phase 120V Basic PDU, 24 NEMA 5-15R Outlets, NEMA L5-30P Input, 15 ft. Cord, 1U Rack-Mount - https://media.province-electric.com/tripplite/2020q1/036dc413d24ca384a1aeebe3a296dfff84ba5f95-medium.png

2.9kW Single-Phase 120V Basic PDU, 24 NEMA 5-15R Outlets, NEMA L5-30P Input, 15 ft. Cord, 1U Rack-Mount

MPN: PDU2430
UPC: 037332117281
PPN: TRP-PDU2430

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$608.39/ EA

Qty:

Loading add to cart quantity...

Description

Delivers 120V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Ideal for networking, telecom, security, audio/video and sound reinforcement applications.

Features

NEMA L5-30P input with 15 ft. (4.5 m) cord
24 NEMA 5-15R outlets—12 front, 12 rear
Switchless design prevents accidental shutdown
17.5 in. all-metal housing
Dual 15A circuit breakers protect against overloads
5-year limited warranty

Specifications

Certifications

Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada)

Physical

Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported

Minimum Required Rack Depth (inches): 7.5

PDU Form Factor: Horizontal (1U)

Shipping Weight (lbs.): 7.50

Unit Weight (lbs.): 7.4

Material of ConstructionMetal

Outlets Measurement (Center to Center)Distance between Front outlets = 30.2mm; Distance between Rear outlets = 30.2mm

Shipping Dimensions (hwd / in.)3.00 x 10.90 x 20.30

Unit Dimensions (hwd / in.)1.75 x 17.5 x 4.5

User Interface, Alerts & Controls

Switches: No power switch

Input

PDU Input Voltage: 100; 120; 127

Maximum Input Amps: 30

PDU Plug Type: NEMA L5-30P

Input Cord Length (ft.): 15

Recommended Electrical Service30A 120V

Maximum Input Amps DetailsAgency de-rated to 24A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (24) 5-15R

Overload Protection: 2 15A breakers protect 12 outlets each

Output Capacity Details3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 12A max per breakered load bank; 12A max per outlet

Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)

Operating Elevation (ft.): 0-10,000

Relative Humidity5 to 95% non-condensing

Operating Elevation (m)0-3000

Overview

UPC Code: 037332117281

PDU TypeBasic

Special Features

TVSS Grounding: Back panel grounding lug

Warranty

Product Warranty Period (Worldwide): 5-year limited warranty
