Tripp Lite PDUNV 1.6/3.8kW Single-Phase 100–240V Basic PDU, 14 Outlets (12 C13 & 2 C19), C20 with 5 Adapters, 10 ft. Cord, 1U Rack-Mount

1.6/3.8kW Single-Phase 100–240V Basic PDU, 14 Outlets (12 C13 & 2 C19), C20 with 5 Adapters, 10 ft. Cord, 1U Rack-Mount
1.6/3.8kW Single-Phase 100–240V Basic PDU, 14 Outlets (12 C13 & 2 C19), C20 with 5 Adapters, 10 ft. Cord, 1U Rack-Mount
1.6/3.8kW Single-Phase 100–240V Basic PDU, 14 Outlets (12 C13 & 2 C19), C20 with 5 Adapters, 10 ft. Cord, 1U Rack-Mount
1.6/3.8kW Single-Phase 100–240V Basic PDU, 14 Outlets (12 C13 & 2 C19), C20 with 5 Adapters, 10 ft. Cord, 1U Rack-Mount
  • MPN: PDUNV
  • UPC: 037332127204
  • PPN: TRP-PDUNV

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$465.02/ EA

Description

Versatile 16A 100–240V PDU compatible with wide range of voltages to deliver single-phase AC power to multiple loads from a utility outlet, generator or UPS system. Recommended for data centers, server rooms and network closets.

Features

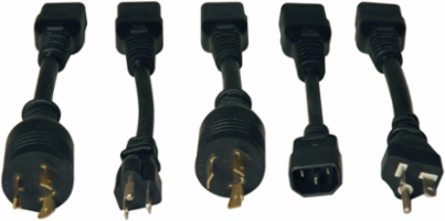

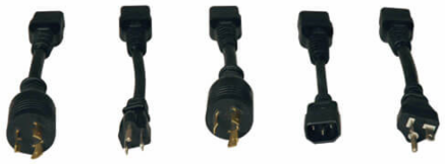

  • C20 input with 10 ft. cord and 5 adapters
  • 14 total outlets—12 C13 and 2 C19
  • Switchless design prevents accidental shutdown
  • Reversible all-metal housing
  • 16A circuit breaker protects against overloads
  • 5-year limited warranty

Specifications

Certifications

Certifications
Tested to UL60950-1 (USA), CSA (Canada), CE (EU)

Physical

Form Factors Supported
1U rackmount, 0U vertical mount, wallmount and under-counter mounting supported
Minimum Required Rack Depth (inches)
7.8
PDU Form Factor
Horizontal (1U)
Shipping Weight (lbs.)
7.00
Unit Weight (lbs.)
3.20
Material of ConstructionMetal
Outlets Measurement (Center to Center)Distance between Front (C13) outlets = 28.75mm; Distance between Rear (C19) outlets = 55mm; Distance between Rear (C13) outelts = 28.75mm
Shipping Dimensions (hwd / in.)2.40 x 11.00 x 20.20
Unit Dimensions (hwd / in.)1.75 x 17.5 x 4.25

User Interface, Alerts & Controls

Switches
n/a

Input

PDU Input Voltage
100; 120; 127; 200; 208; 220; 230; 240
Maximum Input Amps
16
Input Phase
Single-Phase
Recommended Electrical Service20A 120V; 20A 208/240V; 16A 230V
PDU Plug TypeNEMA 5-15P; NEMA 5-20P; NEMA L5-20P; NEMA L6-20P; IEC-320 C14; IEC-320 C20
Input Cord Length (ft.)10

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(12) C13; (2) C19
Overload Protection
16A circuit breaker
Output Capacity Details3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V), 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Output Nominal Voltage100; 120; 127; 200; 208; 220; 230; 240

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Operating Elevation (ft.)
0-10,000
Relative Humidity5 to 95% non condensing
Operating Elevation (m)0-3000

Overview

UPC Code
037332127204
PDU TypeBasic

Warranty

Product Warranty Period (Worldwide)
5-year limited warranty
