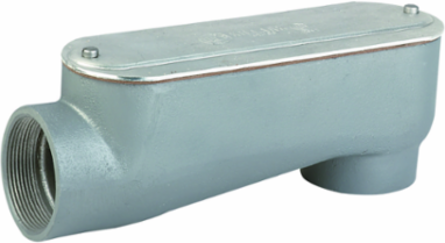

Killark SLBM-4 2 Inch Aluminum LB Hub Conduit Body with Cover & Gasket
- MPN: SLBM-4
- UPC: 783936590097
- PPN: HBL-SLBM-4
- UNSPSC: 39131708
CAD
$143.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
2" LB Hub, Aluminum Service Conduit Body
Features
- Designed for easier wire pulling
- Includes cover and gasket
- A raised dome cover provides additional wiring room. Furnished with cover and gasket.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 2 in
- Length
- 8 in
- Type
- Mogul Conduit Body With Cover & Gasket
- Engineering Drawing 1 Display Text
- SLBM-4 Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SERVICE ENTRANCE MOGUL 1 1/4"
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D232
- Gross Weight with Packaging
- 1.1
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2 EA
- NAICS Code
- 3359323110
Dimensions8 in x 7 in x 2 in
ApplicationMogul fittings are normally used where the standard "O" Series conduit bodies do not offer a sufficient amount of wiring room. For right angle bends where splices, pulls, and taps are needed in a weather-proof chamber.
FinishPowder Epoxy Paint
Hub Size1-1/4"
Special FeaturesA raised dome cover provides additional wiring room. Furnished with cover and gasket.
Width7 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
UL File NumberE22698
SeriesSLB Series
BOX SIZE4.000x11.750x7.250 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936590097
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
