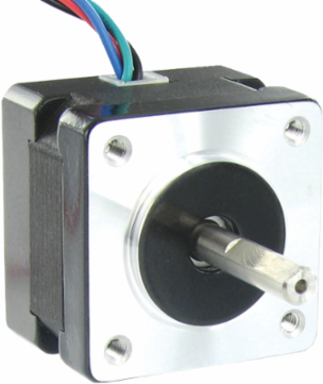

Schneider Electric BRS2361A070 2-Phase Stepper Motor 0.07 N.m Holding Torque, 5 mm Shaft, 26 mm Length
- MPN: BRS2361A070
- PPN: SCH-BRS2361A070
CAD
$90.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for precision in motion control applications, the 2-Phase Stepper Motor from Schneider Electric features a holding torque of 0.07 N.m, making it an ideal choice for tasks requiring reliable placement and movement. With a compact 5 mm shaft and a length of 26 mm, this stepper motor is designed to fit seamlessly into a variety of automation systems. Its robust construction ensures efficient operation in dynamic environments, making it a valuable component for businesses looking to enhance their automated processes.
Documentation & Downloads
Specifications
Key Specifications
- Motor Type
- 2-phase stepper motor
- Product Or Component Type
- motion control motor
Range CompatibilityLexium SD2
Device Short NameBRS2
Complementary
- Circle Diameter Of The Mounting Holes
- 36.77 mm
- Holding Torque
- 0.07 N.m
- Maximum Mechanical Speed
- 2700 rpm
- Mounting Support
- flange
- Number Of Motor Stacks
- 1
- Resistance
- 4.3 Ohm winding)
- Centring Collar Depth
- 2 mm
- Holding Brake
- without
- Second Shaft
- without second shaft end
- Length
- 26 mm
- Centring Collar Diameter
- 22 mm
Number Of Mounting Holes4
Shaft Diameter5 mm
Mounting Holes Diameter3 mm
Supply Voltage Limits12-48 V DC
Rotor Inertia0.012 kg.cm²
Shaft Endsmooth shaft
Electrical Connectionflying lead
[In] Rated Current0.75 A
Shaft Length22 mm
Resolution200 steps number of full steps per revolution || 1.8 ° step angle
Motor Flange Size35.3 mm
Environment
- Ambient Air Temperature For Operation
- -25-40 °C
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without power derating
Ambient Air Temperature For Storage-25-70 °C
Ip Degree Of ProtectionIP20 conforming to IEC/EN 60034-1
Temperature ClassB winding IEC/EN 60034-1
Contractual warranty
- Warranty
- 18 months
