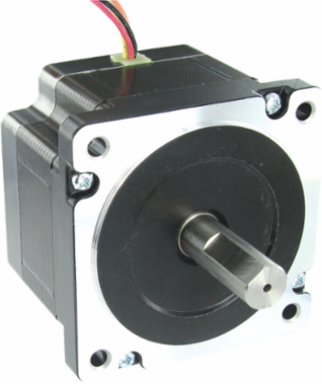

Schneider Electric BRS2853A600 2-Phase Stepper Motor 9.2 N.m 14 mm Shaft 120 mm Length 6.3 A Rated Current
- MPN: BRS2853A600
- PPN: SCH-BRS2853A600
CAD
$512.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 2-phase stepper motor from Schneider Electric is engineered for precision and reliability, making it a vital component in automation and control applications. With a robust torque rating of 9.2 N.m and a rated current of 6.3 A, it offers impressive performance for a variety of motion control tasks. Measuring 120 mm in length and featuring a 14 mm shaft, this motor is designed to fit seamlessly into your existing systems, providing efficient and consistent motion control. Whether you are in the manufacturing or automation sector, this stepper motor stands out for its capability to enhance productivity and ensure meticulous operation.
Documentation & Downloads
Specifications
Key Specifications
| Product Or Component Type | motion control motor |
|---|---|
| Range Compatibility | Lexium SD2 |
| Motor Type | 2-phase stepper motor |
|---|---|
| Device Short Name | BRS2 |
Complementary
| Circle Diameter Of The Mounting Holes | 98.4 mm |
|---|---|
| Mounting Support | flange |
| Rotor Inertia | 3.4 kg.cm² |
| Holding Brake | without |
| Shaft Length | 35 mm |
| Resolution | 200 steps number of full steps per revolution || 1.8 ° step angle |
| Motor Flange Size | 86 mm |
| Holding Torque | 9.2 N.m |
| Mounting Holes Diameter | 5.5 mm |
| Resistance | 0.5 Ohm winding) |
| Electrical Connection | flying lead |
| Maximum Mechanical Speed | 1800 rpm |
|---|---|
| Number Of Motor Stacks | 3 |
| Centring Collar Depth | 2 mm |
| Second Shaft | without second shaft end |
| Length | 120 mm |
| Centring Collar Diameter | 73 mm |
| Number Of Mounting Holes | 4 |
| Shaft Diameter | 14 mm |
| Supply Voltage Limits | 12-48 V DC |
| Shaft End | smooth shaft |
| [In] Rated Current | 6.3 A |
Environment
| Ambient Air Temperature For Operation | -25-40 °C |
|---|---|
| Ambient Air Temperature For Storage | -25-70 °C |
| Ip Degree Of Protection | IP20 conforming to IEC/EN 60034-1 |
| Temperature Class | B winding IEC/EN 60034-1 |
|---|---|
| Relative Humidity | 15-85 % without condensation |
| Operating Altitude | <= 1000 m without power derating |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Pvc Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
