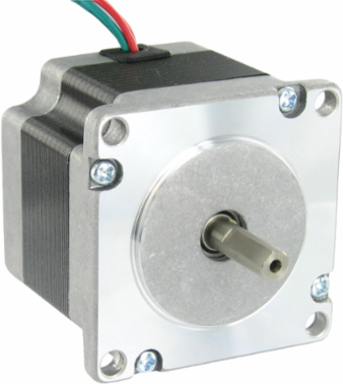

Schneider Electric BRS2572A240 2-Phase Stepper Motor 1.02 N.m 54mm Length 6.35mm Shaft 2.4A
- MPN: BRS2572A240
- PPN: SCH-BRS2572A240
CAD
$133.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 2-phase stepper motor from Schneider Electric is engineered for precision control in various automation and motion control applications. With a robust torque rating of 1.02 N.m, it excels in delivering reliable performance for demanding tasks. Its compact design features a length of 54mm and a shaft diameter of 6.35mm, making it a versatile solution for tight spaces. Operating at 2.4A, this stepper motor is an excellent choice for those seeking to enhance the efficiency and accuracy of their systems.
Documentation & Downloads
Specifications
Key Specifications
- Motor Type
- 2-phase stepper motor
- Product Or Component Type
- motion control motor
Range CompatibilityLexium SD2
Device Short NameBRS2
Complementary
- Circle Diameter Of The Mounting Holes
- 66.6 mm
- Holding Torque
- 1.02 N.m
- Maximum Mechanical Speed
- 1800 rpm
- Mounting Support
- flange
- Number Of Motor Stacks
- 2
- Resistance
- 1.2 Ohm winding)
- Centring Collar Depth
- 1.6 mm
- Holding Brake
- without
- Second Shaft
- without second shaft end
- Length
- 54 mm
- Centring Collar Diameter
- 38 mm
Number Of Mounting Holes4
Shaft Diameter6.35 mm
Mounting Holes Diameter5 mm
Supply Voltage Limits12-48 V DC
Rotor Inertia0.26 kg.cm²
Shaft Endsmooth shaft
Electrical Connectionflying lead
[In] Rated Current2.4 A
Shaft Length19 mm
Resolution200 steps number of full steps per revolution || 1.8 ° step angle
Motor Flange Size56.4 mm
Environment
- Ambient Air Temperature For Operation
- -25-40 °C
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without power derating
Ambient Air Temperature For Storage-25-70 °C
Ip Degree Of ProtectionIP20 conforming to IEC/EN 60034-1
Temperature ClassB winding IEC/EN 60034-1
Contractual warranty
- Warranty
- 18 months
