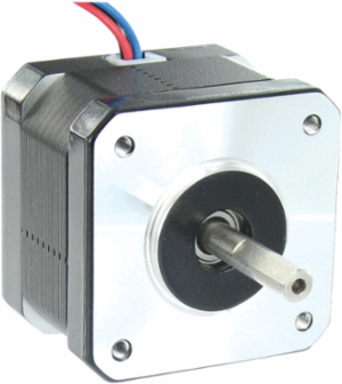

Schneider Electric BRS2421A150 2-Phase Stepper Motor 0.23 N.m Shaft 5 mm Length 34 mm 1.5A
- MPN: BRS2421A150
- PPN: SCH-BRS2421A150
CAD
$108.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This stepper motor from Schneider Electric is an exceptional choice for automation and control applications, offering a torque of 0.23 N.m. With its compact form factor featuring a shaft diameter of 8 mm and a length of 34 mm, this motor is designed to fit seamlessly into a variety of motion control systems. Operating at 1.5A, it provides precise and reliable performance, making it an ideal solution for projects requiring accurate positioning and consistent speed. Whether you're developing sophisticated automation solutions or enhancing existing systems, this motor delivers the efficiency and reliability needed to meet modern operational demands.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- motion control motor
- Range Compatibility
- Lexium SD2
Motor Type2-phase stepper motor
Device Short NameBRS2
Complementary
- Circle Diameter Of The Mounting Holes
- 43.84 mm
- Mounting Support
- flange
- Rotor Inertia
- 0.038 kg.cm²
- Holding Brake
- without
- Shaft Length
- 21.85 mm
- Resolution
- 200 steps number of full steps per revolution || 1.8 ° step angle
- Motor Flange Size
- 42.3 mm
- Holding Torque
- 0.23 N.m
- Mounting Holes Diameter
- 3 mm
- Resistance
- 1.3 Ohm winding)
- Electrical Connection
- flying lead
Maximum Mechanical Speed1800 rpm
Number Of Motor Stacks1
Centring Collar Depth2.03 mm
Second Shaftwithout second shaft end
Length34 mm
Centring Collar Diameter22 mm
Number Of Mounting Holes4
Shaft Diameter5 mm
Supply Voltage Limits12-48 V DC
Shaft Endsmooth shaft
[In] Rated Current1.5 A
Environment
- Ambient Air Temperature For Operation
- -25-40 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC/EN 60034-1
Temperature ClassB winding IEC/EN 60034-1
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without power derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
