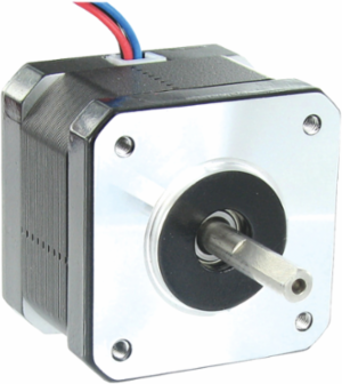

Schneider Electric BRS2423A150 2-Phase Stepper Motor 0.53 N.m 1.5A 5 mm Shaft 48 mm Length
- MPN: BRS2423A150
- PPN: SCH-BRS2423A150
CAD
$119.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This stepper motor from Schneider Electric is engineered for precision in automation and control applications. With a torque rating of 0.53 N.m and a current of 1.5A, it is capable of delivering reliable performance for a variety of motion control tasks. The compact design features a 5 mm shaft and an overall length of 48 mm, making it suitable for installations where space is at a premium. Whether you are designing a robotics project or need a dependable motor for industrial automation, this stepper motor stands out for its efficiency and robust engineering.
Documentation & Downloads
Specifications
Key Specifications
| Product Or Component Type | motion control motor |
|---|---|
| Range Compatibility | Lexium SD2 |
| Motor Type | 2-phase stepper motor |
|---|---|
| Device Short Name | BRS2 |
Complementary
| Circle Diameter Of The Mounting Holes | 43.84 mm |
|---|---|
| Mounting Support | flange |
| Rotor Inertia | 0.082 kg.cm² |
| Holding Brake | without |
| Shaft Length | 21.85 mm |
| Resolution | 200 steps number of full steps per revolution || 1.8 ° step angle |
| Motor Flange Size | 42.3 mm |
| Holding Torque | 0.53 N.m |
| Mounting Holes Diameter | 3 mm |
| Resistance | 2 Ohm winding) |
| Electrical Connection | flying lead |
| Maximum Mechanical Speed | 1800 rpm |
|---|---|
| Number Of Motor Stacks | 3 |
| Centring Collar Depth | 2.03 mm |
| Second Shaft | without second shaft end |
| Length | 48 mm |
| Centring Collar Diameter | 22 mm |
| Number Of Mounting Holes | 4 |
| Shaft Diameter | 5 mm |
| Supply Voltage Limits | 12-48 V DC |
| Shaft End | smooth shaft |
| [In] Rated Current | 1.5 A |
Environment
| Ambient Air Temperature For Operation | -25-40 °C |
|---|---|
| Ambient Air Temperature For Storage | -25-70 °C |
| Ip Degree Of Protection | IP20 conforming to IEC/EN 60034-1 |
| Temperature Class | B winding IEC/EN 60034-1 |
|---|---|
| Relative Humidity | 15-85 % without condensation |
| Operating Altitude | <= 1000 m without power derating |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Pvc Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
