Schneider Electric NSYSMPS8 Mounting Plate Sliding Rails, 800 mm Depth, Set of 2, Steel, Zinc Coated
Schneider Electric NSYSMPS8 Mounting Plate Sliding Rails, 800 mm Depth, Set of 2, Steel, Zinc Coated
- MPN: NSYSMPS8
- PPN: SCH-NSYSMPS8
- UNSPSC: 39121321
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$35.38/ EA
Description

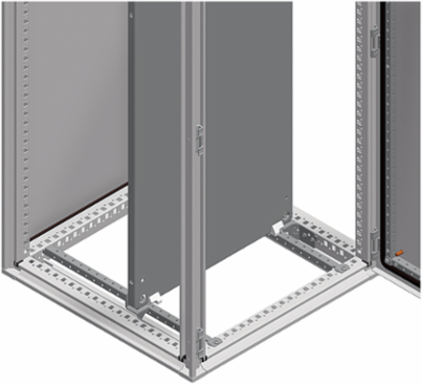

Mounting plate sliding rail for Spacial SF/SFHD, ATV613. Enclosure depth is 800 mm. Multi-purpose mounting accessory. Mounting on bottom of enclosure, in depth. Composition is 2 rails and fixing elements. Steel made, zinc coated surface finish.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 2 rail, fixing elements
- Carbon Footprint Of The Distribution Phase A4
- 0.219448045, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.252776752, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Material
- steel
- Package Weight Lbs
- 1.140 kg
- Product Destination
- for mounting plate
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- mounting accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End Of Life Phase C1 To C43 kg CO2 eq., 2.679966269
Carbon Footprint Of The Manufacturing Phase A1 To A35 kg CO2 eq., 4.953435051
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Fixing Modeby fixing element
Mounting Locationbottom of enclosure, in depth
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typemounting plate
RangePanelSeT
Surface Finishzinc coated
Total Lifecycle Carbon Footprint8 kg CO2 eq.
Medium DescMounting plate sliding rails, PanelSeT SFN, PanelSeT SF, D800mm , set of 2
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 8.105626116
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- mounting plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 744 mm
