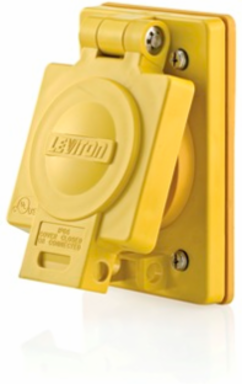

Leviton 67W09 Wetguard Watertight Locking Receptacle 20 Amp 120/208 Volt 4P 4W Yellow
- MPN: 67W09
- UPC: 078477073988
- PPN: LEV-67W09
CAD
$180.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

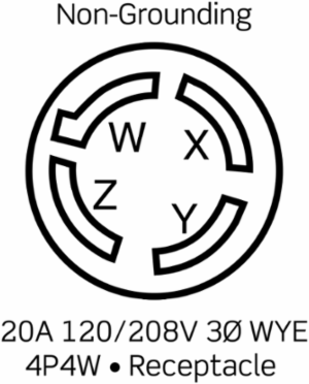

20 Amp, 120/208 Volt 3-Phase Y, Non-NEMA, 4P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, Wetguard w/Cover - YELLOW
Features
- Receptacles with cover closed or used with wetguard plug connected meet IP66 standards
- Accept #14 through #8 AWG solid or stranded wire
- Fit all standard FD boxes
- Maintains IP66 water tight rating when box mounted using Leviton back boxes 452CR, 453CR, or 454CR
- Can be panel mounted (not IP66 rated)
- #6-32 mounting screws (4) included
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Base Material | Nylon |
|---|---|
| Grounding Screw | Brass 8-32 |
| Terminal Screws | Brass 10-32 |
| Face Material | Nylon |
|---|---|
| Line Contacts | Brass .040 Thick |
| Yoke | Nickel-Plated Brass .050 Thick |
Mechanical Specifications
| Product ID | Ratings permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, White-Neutral |
| Terminal Accom. | 18-8 AWG |
|---|
Product Features
| Amperage | 20 A |
|---|---|
| Color | Yellow |
| Grounding | Non-Grounding |
| Pole | 4 |
| Strap Material | Nickel-Plated Brass |
| Voltage | 120/208 VAC |
| Wire | 4 |
| Brand | Wetguard |
|---|---|
| Device Type | Locking Outlet |
| NEMA | Non-NEMA |
| Standards and Certifications | Non-UL |
| Termination | Back |
| Warranty | Limited Lifetime Warranty |
Environmental Specifications
| Environment | Wet |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated V-2 per UL 94 |
|---|
Electrical Specifications
| Current Limiting | Full Rated Current |
|---|---|
| Phase | 3-Phase WYE |
| Dielectric Voltage | Withstands 2000V per UL498 |
|---|---|
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
