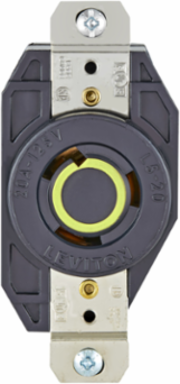

Leviton 2310 Industrial Grade 20 Amp 125 Volt NEMA L5-20R Flush Mount Locking Receptacle
- MPN: 2310
- UPC: 078477801109
- PPN: LEV-2310
CAD
$18.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20 Amp, 125 Volt, NEMA L5-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
- Ideal for motor loads, such as shop vacs and pool pumps, and generators
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|

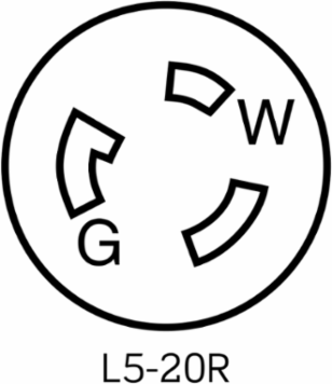

| NEMA | L5-20R |
| Number of Wires | 3 |
| Grounding | Grounding |
| Current Limiting | Full Rated Current |
| Locking | Yes |
| Termination | Back & Side |
| Terminal ID | Marked on Device |
| Material | Valox, Nylon, Ultramid, Brass, Nickel-Plated Brass, Chromated Brass |
| Terminal Screws Material | Chromated Brass |
| Strap Material | Nickel-Plated Brass |
| Line Contacts Material | Brass |
| Body Material | Nylon |
| Face Material | Ultramid |
| Operating Temperature | -40 C to 60 C |
| ANSI Standard | C-73 |
| RoHS Compliance | Yes |
| Color | Black |
| Voltage | 125 VAC |
|---|---|
| Number of Poles | 2 |
| Terminal Accommodation | 14-8 AWG |
| Dielectric Voltage | Withstands 2000 V per UL498 |
| Mounting Type | Flush Mount |
| Screw Terminal Torque | 14-18 in-lbs |
| Cord Range | 0.385 to 0.780 in. |
| Torque Range | 14-18 in-lbs |
| Ground Clips Material | Nickel-Plated Brass |
| Terminal Clamps Material | Zinc-Plated Brass |
| Grounding Screw Material | Chromated Brass |
| Ground Contacts Material | Brass |
| Base Material | Valox |
| Flammability Rating | V-0 per UL 94 |
| UL498 | File E13399 |
| CSA Standard | C22.2 No. 42 |
| UL Fed Spec | W-C-596, File E13399 |
| Country of Origin | Please Contact Customer Service |
