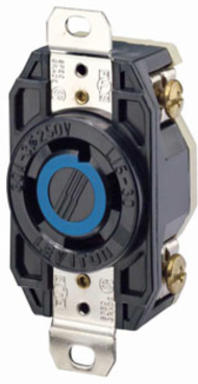

Leviton 2720 30 Amp Flush Mount Locking Receptacle, NEMA L15-30R, 250 Volt, 3-Phase
Leviton 2720 30 Amp Flush Mount Locking Receptacle, NEMA L15-30R, 250 Volt, 3-Phase
- MPN: 2720
- UPC: 078477809631
- PPN: LEV-2720
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$65.71/ EA
Description

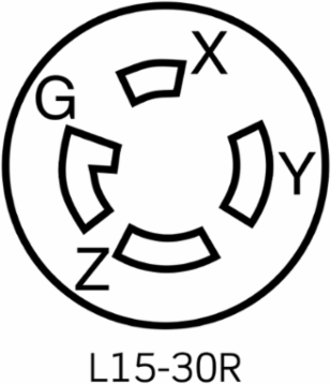

30 Amp, 250 Volt 3-Phase, NEMA L15-30R, 3P, 4W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
- Warranty
- Limited Lifetime Warranty Warranty
CSAC22.2 No. 42
NOM057
UL Fed SpecW-C-596
Material Specifications
- Base Material
- Valox
- Color
- Black
- Face Material
- Ultramid
- Line Contacts
- Brass .040 Thick
- Terminal Clamps
- Nickel-Plated Brass
Body MaterialNylon
Cover MaterialValox 357
Grounding ScrewChromated Brass
Strap MaterialNickel-Plated Brass
Terminal ScrewsChromated Brass
Mechanical Specifications
- Cord Range
- 0.595 to 1.150
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Marked on Device
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.14-8 AWG
TerminationBack & Side
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Product Features
- Brand
- V-0-Max
Device TypeLocking Receptacle
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 4
Current LimitingFull Rated Current
GroundingGrounding
Pole3
Voltage250 VAC
