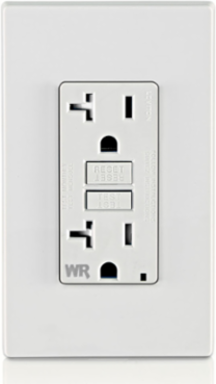

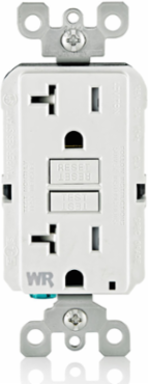

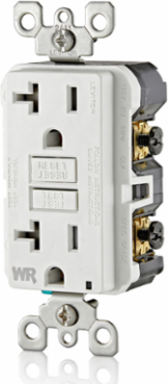

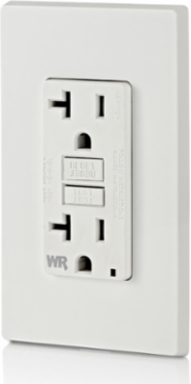

Leviton GFWT2-W 20 Amp Weather-Resistant Self-Test GFCI Outlet, Tamper-Resistant, 125 Volt
Leviton GFWT2-W 20 Amp Weather-Resistant Self-Test GFCI Outlet, Tamper-Resistant, 125 Volt
- MPN: GFWT2-W
- UPC: 078477709191
- PPN: LEV-GFWT2-W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$55.67/ EA
Description
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim Weather & Tamper-Resistant GFCI, Monochromatic, Residential/Commercial applications, back and side wired, wallplate/faceplate sold separately - White
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Stainless steel strap and screws, cold impact resistant face and buttons
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
Specifications
Standards and Certifications
- ANSI
- C-73
- CSA-C22.2 No. 144.1-06
- File LR-57811
- MIL-SPEC
- A-A-55459-SB
- UL 943
- File E48380
CSA C22.2 No. 42Yes
Fed Spec WC-596Yes
NOMYes
UL498Yes
Material Specifications
- Body Material
- Polycarbonate
- Face Material
- Polypropylene
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Weather Resistant
- Yes
ClampsBrass
Grounding ScrewStainless Steel
NotesWallplate Sold Separately
Terminal Accom.14-10 AWG
Terminal ScrewsStainless Steel
YokeStainless Steel
Mechanical Specifications
- Amperage
- 20 A
- Brand
- SmartlockPro
- Face Material
- Polypropylene
- Fed Spec WC-596
- Yes
- Grounding
- Green Ground Screw
- Notes
- Wallplate Sold Separately
- Product ID
- Ratings are permanently marked on device
- Standards and Certifications
- UL/CSA, NEMA WD6, NEMA WD1
- Tamper Resistant
- Yes
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Trip Level
- Class A, 5mA plus or minus 1mA
- Voltage
- 125 VAC
- Wire
- 3
Body MaterialPolycarbonate
ColorWhite
FeatureSelf-Test
GradeResidential/Commercial Specification Grade
NEMA5-20R
Pole2
Screw Terminal Torque14-18 in-lbs
Strap MaterialStainless Steel
Terminal Accom.14-10 AWG
TerminationBack & Side
TypeWeather-Resistant GFCI
Warranty2-Year Limited
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Wallplate
- Not Included
Environmental Specifications
- Body Material
- Polycarbonate
- Face Material
- Polypropylene
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Operating Temperature
- -35C to +66C
- Yoke
- Stainless Steel
ClampsBrass
Grounding ScrewStainless Steel
NotesWallplate Sold Separately
Terminal ScrewsStainless Steel
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating
- 10KA
Operating Temperature-35C to +66C
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
- Short Circuit Current Rating
- 10KA
Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
