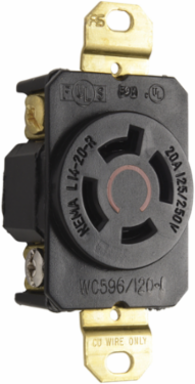

Pass & Seymour L1420R 20A 125/250V NEMA L1420 Single Receptacle 4-Wire, Black, 1.61 Inch Width
- MPN: L1420R
- UPC: 785007142051
- PPN: P-S-L1420R
CAD
$31.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125/250V NEMA L1420 Single Receptacle 4-Wire, Black, 1.61 Inch Width
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.19 in
- Color
- Black
- Width
- 1.61 in
- Country of Origin
- Mexico
- Standard
- UL 498
- Mounting Type
- Box
- Number of Wires
- 4.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 1.0
- Application Sector
- Industrial
- NEMA Configuration Code
- L14-20R
- Wire Connection Type
- Screw Terminals
Height2.29 in
FinishMatte
Product LinePass & Seymour
Amperage20.0 A
StandardFEDSPEC
Voltage125/250 V
Outlet TypeLocking
Number of Poles3-Way
FeaturesImpact Resistant
Application SectorCommercial
FeaturesBrass Mounting Strap
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
