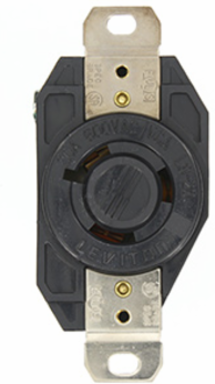

Leviton 2350 Industrial Grade Locking Receptacle, 20 Amp, 600 Volt, NEMA L9-20R, Black
- MPN: 2350
- UPC: 078477045251
- PPN: LEV-2350
CAD
$70.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

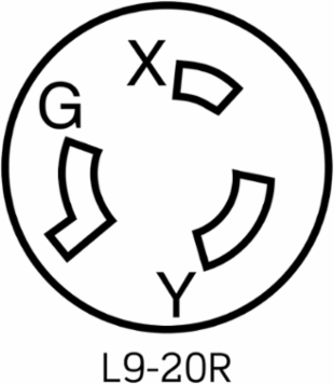

20 Amp, 600 Volt, NEMA L9-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| UL | 498 |
| CSA | C22.2 No. 42 |
|---|---|
| NOM | 057 |
| UL Fed Spec | W-C-596 |
Material Specifications
| Base Material | Valox |
|---|---|
| Color | Black |
| Face Material | Ultramid |
| Grounding Screw | Chromated Brass |
| Strap Material | Nickel-Plated Brass |
| Body Material | Nylon |
|---|---|
| Cover Material | Valox 357 |
| Ground Contacts | Brass |
| Line Contacts | Brass |
| Terminal Screws | Chromated Brass |
Mechanical Specifications
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal Accom. | 14-8 AWG |
| Terminal ID | Marked on Device |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal Clamps | Nickel-Plated Brass |
| Termination | Back & Side |
Warranty
| Warranty | Limited Lifetime Warranty |
|---|
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 600 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
