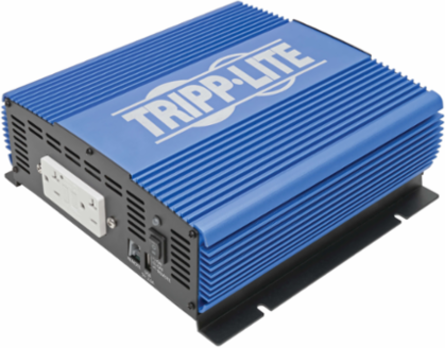

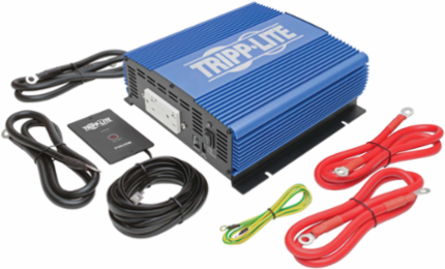

Tripp Lite PINV2000 2000W Medium-Duty Compact Mobile Power Inverter with 2 AC/1 USB - 2.0A/Battery Cables
Tripp Lite PINV2000 2000W Medium-Duty Compact Mobile Power Inverter with 2 AC/1 USB - 2.0A/Battery Cables
- MPN: PINV2000
- UPC: 037332225092
- PPN: TRP-PINV2000
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$728.66/ EA
Description
2000W Medium-Duty Compact Mobile Power Inverter with 2 AC/1 USB - 2.0A/Battery Cables
Features
- Provides portable power for mobile devices, including phones and laptops
- Ideal for areas without regular power outlets, such as campsites or construction sites

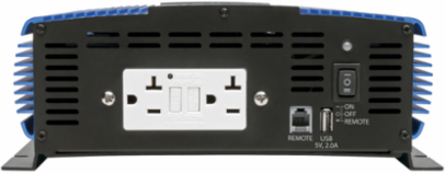

- Dual 5-15/20R GFCI outlets deliver continuous output of 2000W for powering devices
- USB charging port supplies 2A to keep smartphones, tablets and laptops at full capacity
- Rugged aluminum housing built to withstand rigors of travel and outdoor use
- 2-year limited warranty
- Mobile Power Inverter Charges and Powers Multiple Electronic Devices in Your Vehicle
- Dual GFCI-Protected AC Outlets Provide Portable Power for Your Mobile Applications
- USB Charging Port Keeps Your Devices at Full Strength
- Includes the Latest Safety Features to Protect Your Equipment and Battery
- Remote Control Panel Allows Power Control from 20 ft. Away
- Brackets Included for Permanent Mounting
Specifications
Battery
- Expandable Battery Runtime
- User-Supplied 12V DC battery system
- Battery Access
- Terminal Post
DC System Voltage (VDC)12
Battery Pack Accessory (Optional)User-Supplied; 98-121 , BP260
Certifications
- Certifications
- Tested to UL458:2015 6TH EDITION; CAN/CSA-C22.2 NO.107.1:2016 4TH EDITION
Physical
- Form Factors Supported
- Horizontal Floor, Wall-Mount
- Receptacle Color
- White
- Unit Dimensions (hwd / in.)
- 3.58 x 9.69 x 10.590
Material of ConstructionAluminum
Shipping Dimensions (hwd / in.)6.89 x 5.70 x 2.55
Unit Weight (lbs.)7.22
User Interface, Alerts & Controls
- Front Panel LEDs
- Single multi-color status LED for operation (Green) and fault conditions (RED), GFCI protection status LED (Green); PINVRM connection status LED (Green)
- Audible Alarm
- Low Battery, Short Circuit, Over-temperature, High DC Voltage, Low DC Voltage and Overload protection
SwitchesInverter: ON/OFF/REMOTE Rocker Switch; Optional PINVRM wired remote panel: ON/OFF push-button switch.
Input
- Recommended Electrical Service
- 12VDC
- Voltage Compatibility (VAC)
- 120
- Input Cord Length (ft.)
- 3
Input Connection TypeDC terminal posts for included or user-supplied battery cables with ring terminals
Voltage Compatibility (VDC)10V ~ 16V
Output
- Charging Ports / Amps
- (1) 2A
- Output Receptacle Details
- The dual GFCI protected outlets accepts 15A or 20A equipment plugs.
- Output (Watts)
- 2000
- Output Receptacles
- (2) 5-15/20R
- Peak Output Capacity (Watts)
- 4000
- Output Frequency Regulation
- 60 Hz (+/- 3 Hz)
Frequency Compatibility60 Hz
Pure Sine Wave OutputNo
Nominal Output Voltage(s) Supported115V; 120V
Continuous Output Capacity (Watts)2000
Output Voltage RegulationMaintains PWM sine wave output voltage of 120VAC (+/- 10%)
Overload ProtectionYes
Environmental
- Relative Humidity
- 0-95% non-condensing
Operating Temperature0C-40C (32F~104F)
Overview
- UPC Code
- 037332225092
Special Features
- TVSS Grounding
- Grounding lug grounds the inverter to vehicle or earth ground; ground cable included
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Optional Coverage1-Year standard warranty extension
