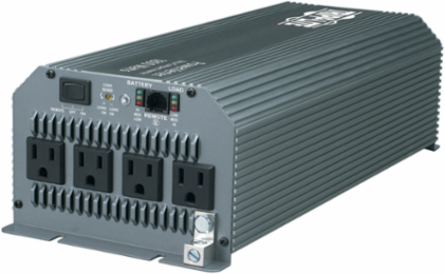

Tripp Lite PV1800HF 1800W PowerVerter Automotive/Truck Inverter with 4 Outlets
Tripp Lite PV1800HF 1800W PowerVerter Automotive/Truck Inverter with 4 Outlets
- MPN: PV1800HF
- UPC: 037332050069
- PPN: TRP-PV1800HF
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$922.97/ EA
Description
1800W PowerVerter Automotive/Truck Inverter with 4 Outlets
Features
- 12V DC input; 120V AC output; 4 outlets
- 1800 watts continuous output
- 3600 watts peak output (instantaneous)
- Powers an entire mobile office
- 1-year limited warranty
Specifications
Battery
- DC System Voltage (VDC)
- 12
Physical
- Cooling Method
- Fan
- Material of Construction
- Aluminum/sheet metal
- Shipping Weight (lbs.)
- 9.40
- Unit Weight (lbs.)
- 7.25
Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Shipping Dimensions (hwd / in.)4.50 x 16.80 x 6.60
Unit Dimensions (hwd / in.)4 x 6 x 15
User Interface, Alerts & Controls
- Audible Alarm
- Dual-function alarm indicates overload conditions or low DC input voltage of 10.5V or less.
Input
- Recommended Electrical Service
- Requires 12VDC input source capable of delivering 200A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 250A battery system fusing is recommended.
- Input Connection Type
- Set of 2 DC bolt-down wiring terminals. User supplies cabling; minimum gauges for full load operation: 0 (16 ft max), 00 or 2/0 (20 ft max)
Maximum Input Amps / WattsFull continuous load - 200A at 12VDC, No load - 2.7A at 12VDC, Shutdown
Voltage Compatibility (VDC)12
Output
- Frequency Compatibility
- 60 Hz
- Output (Watts)
- 1800
- Output Receptacles
- (4) 5-15R
- Peak Output Capacity (Watts)
- 3600
- Output Frequency Regulation
- 60 Hz (+/- 3 Hz)
Pure Sine Wave OutputNo
Nominal Output Voltage(s) Supported120V
Continuous Output Capacity (Watts)1800
Output Voltage RegulationMaintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC)
Overload ProtectionAutomatic overload protection shuts down inverter system in the event of overloads.
Environmental
- Relative Humidity
- 0-95% non-condensing
Overview
- UPC Code
- 037332050069
Special Features
- TVSS Grounding
- Grounding lug grounds the inverter to vehicle or earth ground; user supplies cabling
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
