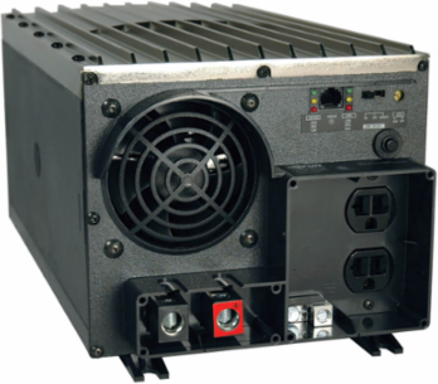

Tripp Lite PV2000FC 2000W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
Tripp Lite PV2000FC 2000W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
- MPN: PV2000FC
- UPC: 037332042194
- PPN: TRP-PV2000FC
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1406.46/ EA
Description
Need heavy-duty power on the go? No problem. The PV2000FC Industrial-Strength Inverter offers 2 outlets and up to 2000W of continuous output from a vehicle’s battery or a 12V external battery bank, making it perfect for a work truck with industrial equipment (e.g. power tools, electric motors). Its highly efficient operation can handle peak load requirements for equipment with high-current startup needs—up to 200% of its rated capacity.
Features
- Designed for heavy duty and motor loads
- 12V DC input; 120V AC output; 2 outlets
- 2000W continuous output
- Peak surge output: OverPower (up to 1 hour)—3000W, Double-Boost (up to 10 seconds)—4000W
- High-efficiency power conversion
- Automatic overload protection
- 1-year limited warranty
Specifications
Battery
- DC System Voltage (VDC)
- 12
Certifications
- Certifications
- Meets UL458 (USA, Canada), RoHS Compliant
Physical
- Cooling Method
- Fan
- Material of Construction
- Polycarbonate
- Shipping Weight (lbs.)
- 44.00
- Unit Weight (lbs.)
- 39.0
Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Shipping Dimensions (hwd / in.)12.90 x 14.70 x 19.00
Unit Dimensions (hwd / in.)7.25 x 8.5 x 16.25
User Interface, Alerts & Controls
- Front Panel LEDs
- Set of 6 LEDs offers continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences
Switches3-position on/off/remote switch enables simple on/off power control plus "remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory
Input
- Recommended Electrical Service
- Requires 12V DC input source capable of delivering 200A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 400A battery system fusing is recommended
- Input Connection Type
- Set of 2 DC bolt-down wiring terminals
- Voltage Compatibility (VDC)
- 12
Maximum Input Amps / WattsFull continuous load - 200A at 12V DC, No load - 2.2A at 12V DC
Input Cord Length DetailsUser supplies cabling; 2/0 gauge or larger recommended
Output
- Frequency Compatibility
- 60 Hz
- Output (Watts)
- 2000
- Output Receptacles
- (2) 5-15R
- Peak Output Capacity (Watts)
- 4000
- Output Frequency Regulation
- 60 Hz (+/- 0.3 Hz)
Pure Sine Wave OutputNo
Nominal Output Voltage(s) Supported120V
Continuous Output Capacity (Watts)2000
Output Voltage RegulationMaintains PWM sine wave output voltage of 120 V AC (+/-5%)
Overload ProtectionCircuit breaker
Environmental
- Relative Humidity
- 0-95% non-condensing
Overview
- UPC Code
- 037332042194
Special Features
- Load Sensing
- Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
