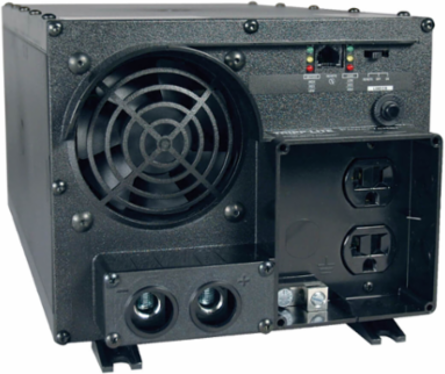

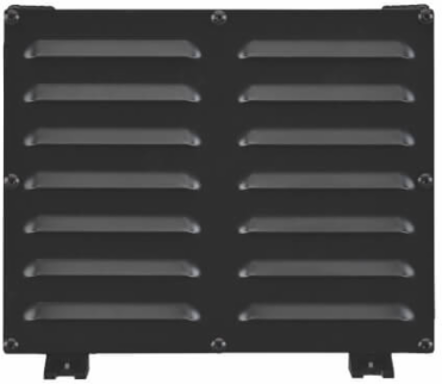

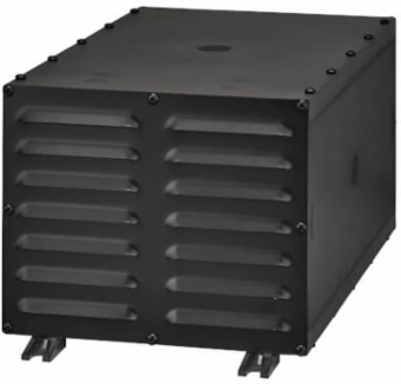

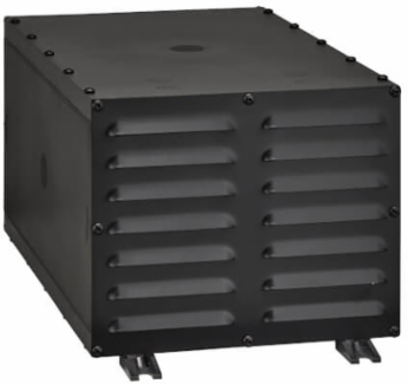

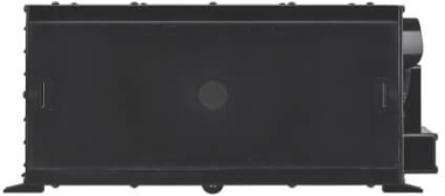

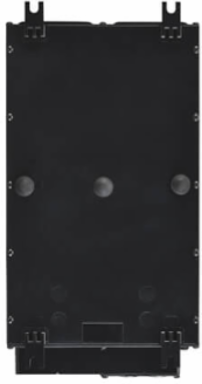

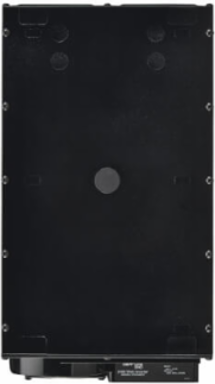

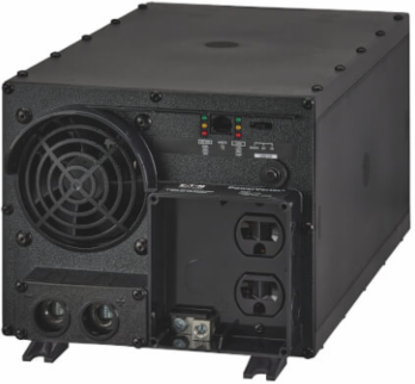

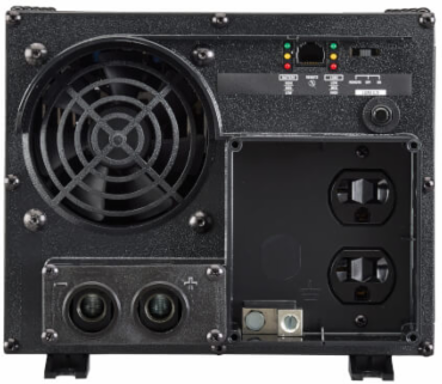

Tripp Lite PV2400FC 2400W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets

MPN: PV2400FC
UPC: 037332042200
PPN: TRP-PV2400FC

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1635.62/ EA

Qty:

Loading add to cart quantity...

Description

2400W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets

Features

Designed for heavy duty and motor loads
24V DC input; 120V AC output; 2 outlets
2400W continuous output
Peak surge output: OverPower (up to 1 hour)—3600W; Double-Boost (up to 10 seconds)—4800W
High-efficiency power conversion
Automatic overload protection
1-year limited warranty

Specifications

Battery

DC System Voltage (VDC): 24

Physical

Cooling Method: Fan

Material of Construction: Polycarbonate

Shipping Weight (lbs.): 38.60

Unit Weight (lbs.): 39

Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)

Shipping Dimensions (hwd / in.)12.90 x 14.40 x 21.30

Unit Dimensions (hwd / in.)7.25 x 8.5 x 16.25

User Interface, Alerts & Controls

Front Panel LEDs: Set of 6 LEDs provides continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences

Switches3-position on/off/remote switch enables simple on/off power control plus "remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory

Input

Recommended Electrical Service: Requires 24V DC input source capable of delivering 120A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 250A battery system fusing is recommended

Input Connection Type: Set of 2 bolt-down DC wiring terminals

Voltage Compatibility (VDC): 24

Maximum Input Amps / WattsFull continuous load - 120A at 24V DC; No load - 2.2A at 24V DC

Input Cord Length DetailsUser supplies cabling; 2/0 gauge or larger recommended

Output

Frequency Compatibility: 60 Hz

Output (Watts): 2400

Output Receptacles: (2) 5-15R

Peak Output Capacity (Watts): 4800

Output Frequency Regulation: 60 Hz (+/- 0.3 Hz)

Pure Sine Wave OutputNo

Nominal Output Voltage(s) Supported120V

Continuous Output Capacity (Watts)2400

Output Voltage RegulationMaintains PWM sine wave output voltage of 120 V AC (+/-5%)

Overload ProtectionCircuit breaker

Environmental

Relative Humidity: 0-95% non-condensing

Overview

UPC Code: 037332042200

Warranty

Product Warranty Period (Worldwide): 1-year limited warranty
