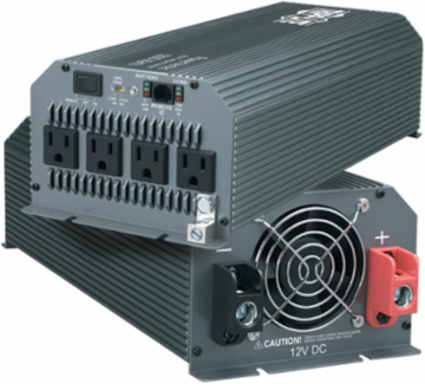

Tripp Lite PV1000HF 1000W PowerVerter Compact Inverter for Trucks with 4 Outlets

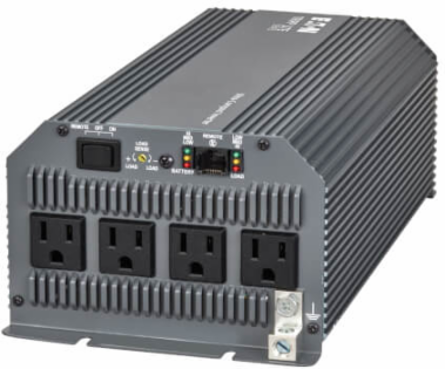

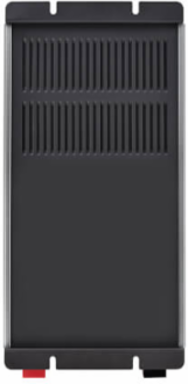

1000W PowerVerter Compact Inverter for Trucks with 4 Outlets
  • MPN: PV1000HF
  • UPC: 037332097187
  • PPN: TRP-PV1000HF

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$655.07/ EA

Description

1000W PowerVerter Compact Inverter for Trucks with 4 Outlets

Features

  • 12V DC input; 120V AC output; 4 outlets
  • 1000 watts continuous output
  • 2000 watts peak output (instantaneous)
  • Powers an entire mobile office
  • 1-year limited warranty

Specifications

Battery

DC System Voltage (VDC)
12

Physical

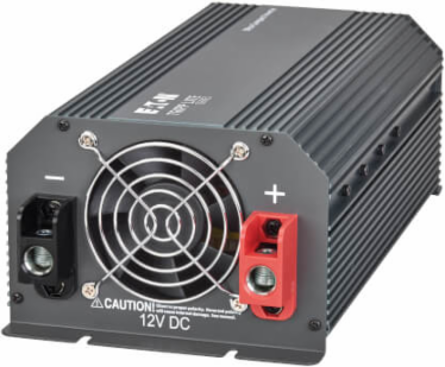

Cooling Method
Fan
Material of Construction
Aluminum / sheet metal
Shipping Weight (lbs.)
7.10
Unit Weight (lbs.)
6
Form Factors SupportedMounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Shipping Dimensions (hwd / in.)4.40 x 7.80 x 18.40
Unit Dimensions (hwd / in.)4.25 x 6 x 13

User Interface, Alerts & Controls

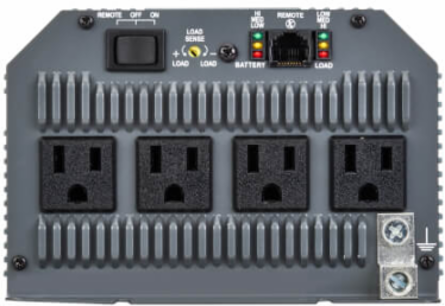

Front Panel LEDs
Set of 6 LEDs offer continuous status information on battery and connected load conditions
Audible Alarm
Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less
Switches3 position rocker switch enables on/off power control, plus "remote" setting which enables inverter to be remotely powered on or off when used in conjunction with APSRM4 Remote Control Module (sold separately)

Input

Recommended Electrical Service
Requires 12V DC input source capable of delivering 100A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 175A battery system fusing is recommended.
Input Connection Type

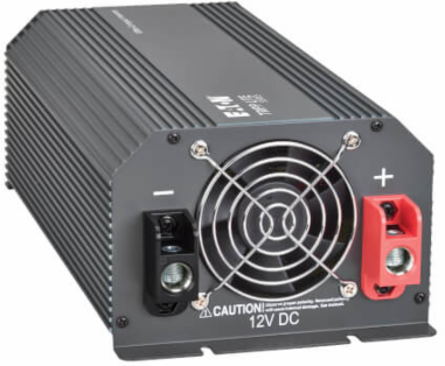

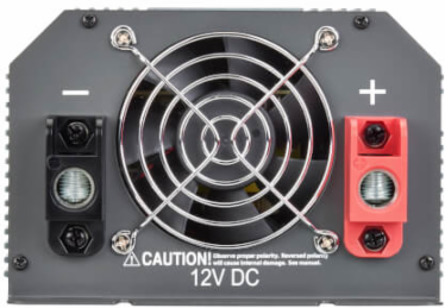

Set of 2 DC bolt-down wiring terminals
Voltage Compatibility (VDC)
12
Maximum Input Amps / WattsFull continuous load - 100A at 12V DC, No load - 1.5A at 12V DC, Shutdown / load sense mode - 100 micro amps
Input Cord Length DetailsUser supplies cabling. Minimum gauges for full load operation: #4 wire (12 ft max), #2 wire (20 ft max), #0 wire (31 ft max).

Output

Frequency Compatibility
60 Hz
Output (Watts)
1000
Output Receptacles
(4) 5-15R
Peak Output Capacity (Watts)
2000
Output Frequency Regulation
60 Hz (+/- 5% Hz)
Pure Sine Wave OutputNo
Nominal Output Voltage(s) Supported120V
Continuous Output Capacity (Watts)1000
Output Voltage RegulationMaintains PWM sine wave output voltage of 115 VAC (+/- 10% VAC)
Overload ProtectionAutomatic overload protection shuts down inverter system in the event of overloads. Inverter and electrical system are further protected via four internal 40A automotive fuses

Environmental

Relative Humidity
0-95% non-condensing

Overview

UPC Code
037332097187

Warranty

Product Warranty Period (Worldwide)
1-year limited warranty
