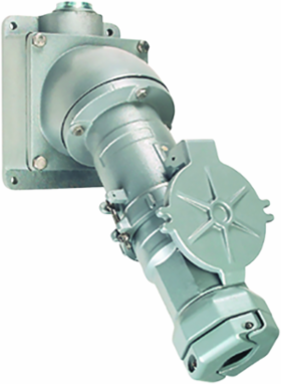

Killark VR20322E7-S39 200A 2 Pole 3 Wire Receptacle with E Type Box 2-1/2 Inch, Pin & Sleeve
Killark VR20322E7-S39 200A 2 Pole 3 Wire Receptacle with E Type Box 2-1/2 Inch, Pin & Sleeve
- MPN: VR20322E7-S39
- UPC: 783936063713
- PPN: HBL-VR20322E7-S39
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
200A 2 Pole 3 Wire Receptacle with E Type Box 2-1/2" - Reverse Service
Features
- Patented “Breech-Lock” cap serves as both flip lid and screw cover.
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Boxes come with a green grounding screw.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 9.87 in x 8.19 in x 10.81 in
- Hub Size
- 2-1/2"
- Voltage Rating
- 600 VAC;250 VDC
- Amperage Rating
- 200 A
- Finish Type
- Baked Powder Epoxy/Polyester Finish
- Number Of Wires
- 2
- Type
- Pin & Sleeve
- Class Code
- D35
- Freight Class Code
- 06168002
- Image Actual Or Representative
- R
- Sub Class Code
- D35D260
- Series
- VersaMate Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Total Units
- 1 EA
Back Box TypeDEAD END
Height10.81 in
Length9.87 in
Width8.19 in
ApplicationSuitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Frequency Rating50-400 Hz
StyleStyle II
ARRA CompliantContact Manufacturer
Description - Invoice200A REC 2W3P "E" W/BOX REV SER
Harmonization Code8536694020
MSDS FlagNo
MaterialBody-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936063713
Certifications
- EU RoHS Indicator
- Contact Manufacturer
