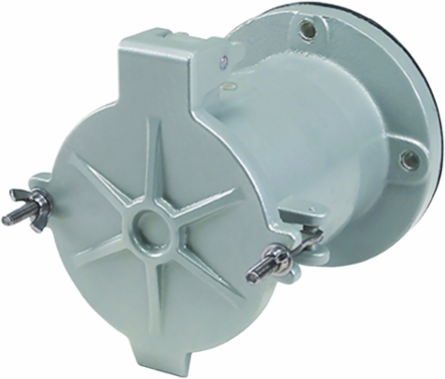

Killark VR20422 200A 3 Pole 4 Wire Receptacle Assembly
- MPN: VR20422
- UPC: 783936833149
- PPN: HBL-VR20422
CAD
$2186.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
200A 3 Pole 4 Wire Receptacle Assembly
Features
- Patented “Breech-Lock” cap serves as both flip lid and screw cover.
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Boxes come with a green grounding screw.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 7.59 in
- Voltage Rating
- 600 VAC;250 VDC
- Amperage Rating
- 200 A
- Finish Type
- Baked Powder Epoxy/Polyester Finish
- Number Of Wires
- 3
- Type
- Pin & Sleeve
- Description - Invoice
- 200A 3W4P RECPT. ASSY S-37
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Material
- Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936833149
Dimensions7.87 in x 6.83 in x 7.59 in
Length7.87 in
Width6.83 in
ApplicationSuitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Frequency Rating50-400 Hz
StyleStyle II
Class CodeD35
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD35D260
SeriesVersaMate Series
BOX SIZE(in)
NAICS Code335931A104
Certifications
