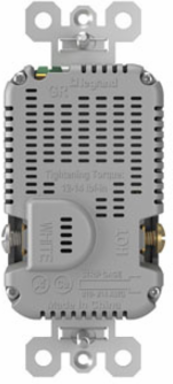

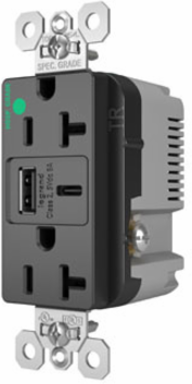

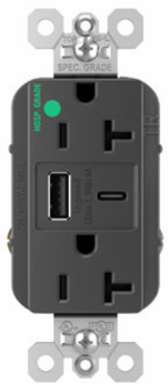

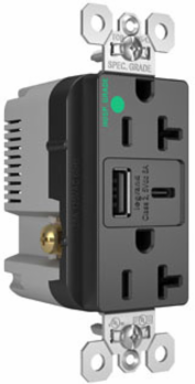

Pass & Seymour TR20HUSBAC6BK 20A 125V Hospital-Grade Tamper-Resistant Receptacle, USB Ports, 1.425 Inch Depth
- MPN: TR20HUSBAC6BK
- UPC: 785007209839
- PPN: P-S-TR20HUSBAC6BK
- UNSPSC: 39121406
CAD
$92.39
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Hospital-Grade Tamper-Resistant Receptacle, USB Ports, 1.425 Inch Depth
Features
- Overall 6A charging capability with smart current-sharing technology to allow for full 3A through a singular Type-C port.
- Posted terminal screws and external back-wire pressure plates for more productive and reliable terminations.
- Reinforced nylon USB Type-A ports to withstand abuse over the life of the product.
- Type-A and Type-C ports carry a minimum rating of 10,000 insertions.
- Slim design allows for installation in standard depth wall boxes.
- Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 2.677 in |
| Color | Black |
| Amperage | 20.0 A |
| USB Amperage | 6.0 A |
| Connection Location | Side Only |
| Is Tamper-Resistant | Yes |
| Outlet Type | USB-Charging; Hospital Grade; Tamper-Resistant |
| Number of Poles | Double Pole |
| Features | USB-C Charging; USB-A Charging |
| Warranty Type | 1-Year Limited Warranty |
| Voltage | 125.0 V |
| Mounting Type | Box |
| Number of Receptacles | 2.0 |
| Operating Temperature | -40°-60°C |
| Depth | 1.425 in |
|---|---|
| Width | 1.693 in |
| Product Line | Pass & Seymour |
| Number of USBs | 2.0 |
| Number of Wires | 3.0 |
| Operating Temperature Max | 60.0 °C |
| NEMA Configuration Code | 5-20R |
| USB Wattage | 15.0 W |
| Wall Plate Included | No |
| Operating Temperature Min | -40.0 °C |
| Frequency Rating | 60 Hz |
| Wire Size | 14 - 10 AWG |
| Indoor/Outdoor | Indoor |
| Application Sector | Healthcare; Commercial |
| Wire Connection Type | Screw Terminals |
