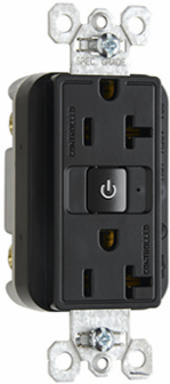

Pass & Seymour RF26352CDBK 20A 125V Dual-Control Duplex Receptacle, Black, 2.68 Inch Height, 1.73 Inch Width
- MPN: RF26352CDBK
- UPC: 785007039993
- PPN: P-S-RF26352CDBK
CAD
$146.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 125V Dual-Control Duplex Receptacle, Black, 2.68 Inch Height, 1.73 Inch Width
Features
- Wireless control of plug load via RF communication and integral relay.
- Available in 'TP' series, extra 3/16 inch width and height than Standard size plates: and 'TPJ' series, extra 3/16 inch width and height than Junior-Jumbo size plates.
- Product meets requirements of UL498B: Receptacles with integral switching means.
- Binding button on face also serves as a manual override.
- Simple, three-step binding process for wireless communication with RF Single Pack
- Corrosion-resistant plated steel strap locked into face and back body to resist pulling away from face/body assembly.
- .032 inch think, brass, triple-wipe power contacts for lasting retention.
- LED Indicator Light on the receptacle guides binding process and indicated power to the receptacle.
- Permanently molded face offers clear identification of controlled receptacle for end users.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.25 in
- Height
- 2.68 in
- Width
- 1.73 in
- Product Line
- Pass & Seymour
- Voltage
- 125.0 V
- Features
- Plugload
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-20R
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
ColorBlack
FinishMatte
Country of OriginChina
Amperage20.0 A
StandardFEDSPEC
Number of Wires3.0
Wire Size14 - 10 AWG
FeaturesDual-Controlled
Outlet TypeStraight Blade
Application SectorCommercial
Outlet TypeEnergy Saving On/Off
Wire Connection TypeScrew Terminals
Wire Connection TypeInternal Pressure Plates
