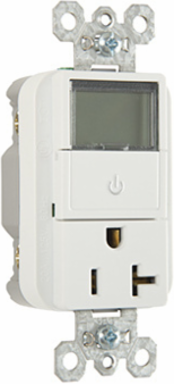

Pass & Seymour PLT26351W Heavy Duty Timer Receptacle, 20A 125V, White, 2.68 Inch Height
Pass & Seymour PLT26351W Heavy Duty Timer Receptacle, 20A 125V, White, 2.68 Inch Height
- MPN: PLT26351W
- UPC: 785007039962
- PPN: P-S-PLT26351W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$127.74/ EA
Description
New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass and Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers electric bills.
Features
- Receptacle compliant with 2014 NEC, CA Title 24, and ASHRAE 90.1.
- Products meets requirements of UL498B: Receptacles with integral switching means.
- Power button on face serves as a manual override to scheduled programs.
- Two individual programs can be set to automatically control plug loads.
- Corrosion-resistant, plated steel strap locked into face and back body to resist pulling away from face/body assembly.
- Bottom half of device features a single receptacle that is automatically controlled by the time clock.
- Clear LCD display shows program status, ON/OFF status, current time, and day of the week.
- Feed-thru capability allows for downstream control of multiple receptacles.
- Center panel flips open for easy, three button programming.
- Permanently molded power symbol on face identitfies controlled receptacle in accordance with ASHRAE 90.1, NEC, and Title 24.
- .032 inch think, brass triple-wipe power contracts for lasting retention.
- Auto-ground eliminates the necessity to terminate grounding conductor in device.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Wire Size: #14 - #10 AWG Copper Conductor Only
Specifications
Specifications
- Depth
- 1.25 in
- Color
- White
- Width
- 1.73 in
- Phase
- Single
- Standard
- RoHS
- Standard
- CulUS
- Voltage
- 125.0 V
- Features
- Plugload
- Standard
- UL Listed
- Standard
- CSA Listed
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 1.0
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-20R
- Outlet Type
- Energy Saving On/Off
- Wire Connection Type
- Screw Terminals
- Dielectric Strength
- Withstands 2000V minimum
- Special Features
- New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass&Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers' electric bills.
Height2.68 in
Product LinePass & Seymour
Country of OriginChina
StandardFSUL
FeaturesTimer
Amperage20.0 A
StandardFEDSPEC
Mounting TypeBox
Number of Wires3.0
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Outlet TypeStraight Blade
Application SectorCommercial
Environmental ConditionsUL94 V2
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
FeaturesSingle Piece Plated Steel Mounting Strap
