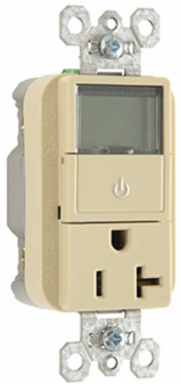

Pass & Seymour PLT26351I 20A 125V Heavy Duty Spec Grade Plug Load Timer Receptacle, 1.25 Inch Depth, 2.68 Inch Height, 1.73 Inch Width
Pass & Seymour PLT26351I 20A 125V Heavy Duty Spec Grade Plug Load Timer Receptacle, 1.25 Inch Depth, 2.68 Inch Height, 1.73 Inch Width
- MPN: PLT26351I
- UPC: 785007040029
- PPN: P-S-PLT26351I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$127.74/ EA
Description
20A 125V Heavy Duty Spec Grade Plug Load Timer Receptacle, 1.25 Inch Depth, 2.68 Inch Height, 1.73 Inch Width
Features
- Receptacle compliant with 2014 NEC, CA Title 24, and ASHRAE 90.1.
- Products meets requirements of UL498B: Receptacles with integral switching means.
- Power button on face serves as a manual override to scheduled programs.
- Two individual programs can be set to automatically control plug loads.
- Corrosion-resistant, plated steel strap locked into face and back body to resist pulling away from face/body assembly.
- Bottom half of device features a single receptacle that is automatically controlled by the time clock.
- Clear LCD display shows program status, ON/OFF status, current time, and day of the week.
- Feed-thru capability allows for downstream control of multiple receptacles.
- Center panel flips open for easy, three button programming.
- Permanently molded power symbol on face identitfies controlled receptacle in accordance with ASHRAE 90.1, NEC, and Title 24.
- .032 inch think, brass triple-wipe power contracts for lasting retention.
- Auto-ground eliminates the necessity to terminate grounding conductor in device.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Wire Size: #14 - #10 AWG Copper Conductor Only
Specifications
Specifications
- Depth
- 1.25 in
- Phase
- Single
- Standard
- FSUL
- Country of Origin
- China
- Standard
- CulUS
- Voltage
- 125.0 V
- Features
- Plugload
- Standard
- UL Listed
- Standard
- CSA Listed
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 1.0
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-20R
- Outlet Type
- Energy Saving On/Off
- Wire Connection Type
- Screw Terminals
- Dielectric Strength
- Withstands 2000V minimum
- Special Features
- New requirements for reducing energy consumption in commercial buildings are here. With devices that are so easy to understand, install and use, our full line of Pass&Seymour Plug Load Controllable solutions will take a load off your mind and a load off your customers' electric bills.
- Product Line
- Pass & Seymour
Height2.68 in
Width1.73 in
StandardRoHS
FeaturesTimer
Amperage20.0 A
StandardFEDSPEC
Mounting TypeBox
Number of Wires3.0
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Outlet TypeStraight Blade
Application SectorCommercial
Environmental ConditionsUL94 V2
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
FeaturesSingle Piece Plated Steel Mounting Strap
ColorIvory
