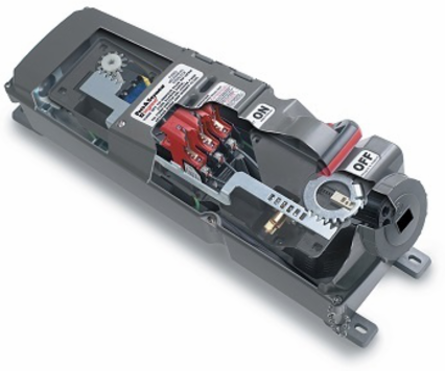

Pass & Seymour PS420FMIR12W 20A 3 Pole 4 Wire Fusible Mechanical Interlock, 24.5 Inch Height
- MPN: PS420FMIR12W
- UPC: 785007101041
- PPN: P-S-PS420FMIR12W
CAD
$3905.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 3 Pole 4 Wire Fusible Mechanical Interlock, 24.5 Inch Height
Features
- Top or Bottom feed.
- Unit shipped with no holes drilled: a top and bottom feed spot drill is provided for locating hole saw or knockout.
- End user decides at installation whether top or bottom feed is appropriate.
- No closure plug kits required.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 10.09 in
- Height
- 24.5 in
- Width
- 9.13 in
- Standard
- UL Listed
- Warranty Type
- 1-Year
- Number of Poles
- 3-Way
- Enclosure Type
- NEMA 4X
- Outlet Type
- Pin & Sleeve
- Application Sector
- Industrial
- IEC Clock Position
- Clock Position 12
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -50°-60°C
- Color
- Gray
Amperage20.0 A
Voltage600.0 V
Country of OriginUnited States
Number of Wires4.0
Indoor/OutdoorIndoor
Enclosure TypeNEMA 12
Wall Plate IncludedYes
Number of Receptacles1.0
Connection LocationTop and Bottom
Wire Connection TypeScrew Terminals
Operating Temperature Min-50.0 °C
Special FeaturesImpact, chemical resistant, non conductive retaining screw, brass male/female contacts
Product LinePass & Seymour
