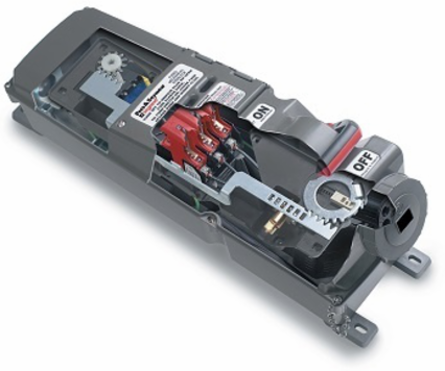

Pass & Seymour PS420FMIR7W 20A 3 Pole 4 Wire Fusible Mechanical Interlock, 10.09 Inch Depth, 24.5 Inch Height, 9.13 Inch Width
- MPN: PS420FMIR7W
- UPC: 785007101065
- PPN: P-S-PS420FMIR7W
CAD
$3905.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 3 Pole 4 Wire Fusible Mechanical Interlock, 10.09 Inch Depth, 24.5 Inch Height, 9.13 Inch Width
Features
- Top or Bottom feed.
- Unit shipped with no holes drilled: a top and bottom feed spot drill is provided for locating hole saw or knockout.
- End user decides at installation whether top or bottom feed is appropriate.
- No closure plug kits required.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 10.09 in
- Amperage
- 20.0 A
- Voltage
- 240.0 V
- Country of Origin
- United States
- Warranty Type
- 1-Year
- Number of Poles
- 3-Way
- Enclosure Type
- NEMA 4X
- Outlet Type
- Pin & Sleeve
- Application Sector
- Industrial
- IEC Clock Position
- Clock Position 7
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -50°-60°C
- Color
- Gray
Height24.5 in
Width9.13 in
StandardUL Listed
Number of Wires4.0
Indoor/OutdoorIndoor
Enclosure TypeNEMA 12
Wall Plate IncludedYes
Number of Receptacles1.0
Connection LocationTop and Bottom
Wire Connection TypeScrew Terminals
Operating Temperature Min-50.0 °C
Special FeaturesImpact, chemical resistant, non conductive retaining screw, brass male/female contacts
Product LinePass & Seymour
