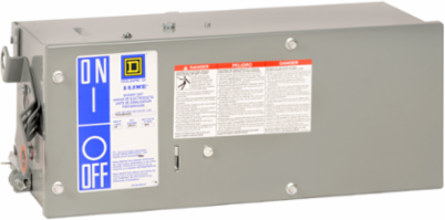

Square D PHG36150GNU31X Plug-in Unit, I-Line Busway, 150A, 600V AC, 3 Phase, H-frame

MPN: PHG36150GNU31X
PPN: SCH-PHG36150GNU31X
UNSPSC: 39131702

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The I-Line Busway Plug-in Unit from Schneider Electric is designed to deliver robust performance and reliable power distribution in a variety of industrial applications. This model, rated at 150A and 600V AC, features a three-phase H-frame configuration that ensures efficient energy management. With its innovative design, this unit seamlessly integrates into existing busway systems, providing a space-saving solution that enhances both operational efficiency and safety. The quality engineering behind Schneider Electric products ensures long-lasting durability, making this plug-in unit a critical component for any power distribution setup.

Documentation & Downloads

Specifications

Key Specifications

Width	551 mm
Trip Unit Technology	electronic, standard, MicroLogic 3.2, LI
Circuit Breaker Type	H-frame

Height	216 mm
Range Of Product	I-Line
Product Or Component Type	plug-in unit

Complementary

Line Rated Current	150-150 A
Mounting Mode	plug-in
Protection Type	circuit breaker
Width	551 mm
Phase	3 phase
Awg Gauge	AWG 8...AWG 3/0 1 phase and neutral \|\| AWG 6...AWG 2/0 1 ground
[Ics] Rated Service Short-Circuit Breaking Capacity	80 %

Height	216 mm
Poles Description	3P
Wiring Configuration	4-wire (integral ground bus)
Depth	232 mm
[Ue] Rated Operational Voltage	600 V AC
Breaking Capacity	65 kA 240 V AC \|\| 35 kA 480 V AC \|\| 18 kA 600 V AC

Environment

Product Certifications	UL listed file E22182 \|\| CSA C22.2 No 27

Standards	UL 857

Contractual warranty

Warranty	18 months

Offer Sustainability

China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1410002EN
Eu Rohs Directive	Compliant with Exemptions
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile	N/A
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
