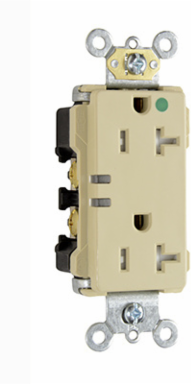

Pass & Seymour TR26362HGPILA 20A Hospital-Grade Receptacle, Light Almond, 2.75 Inch Height, 1.625 Inch Width
Pass & Seymour TR26362HGPILA 20A Hospital-Grade Receptacle, Light Almond, 2.75 Inch Height, 1.625 Inch Width
- MPN: TR26362HGPILA
- UPC: 785007041477
- PPN: P-S-TR26362HGPILA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$48.02/ EA
Description
Built for the harshest medical environments, Pass and Seymour power indicating receptacles feature two industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacleeven with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety.
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Wire Size: #14 - #10 AWG Copper Conductor Only
Specifications
Specifications
- Depth
- 0.9 in
- Height
- 2.75 in
- Width
- 1.625 in
- Special Features
- Built for the harshest medical environments, Pass&Seymour power indicating receptacles feature two industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacle&mdash:even with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety.
- Standard
- FSUL
- Amperage
- 20.0 A
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Features
- Decorator Style
- Number of Poles
- Double Pole
- Outlet Type
- Tamper-Resistant
- NEMA Configuration Code
- 5-20R
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 2000V minimum
ColorLight Almond
Product LinePass & Seymour
Country of OriginMexico
PhaseSingle
StandardcULus
Voltage125.0 V
StandardUL Listed
StandardCSA Listed
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Number of Receptacles2.0
Outlet TypePower Indicating
Application SectorHealthcare
Environmental ConditionsUL94 V2
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
FeaturesSingle Piece Plated Steel Mounting Strap
