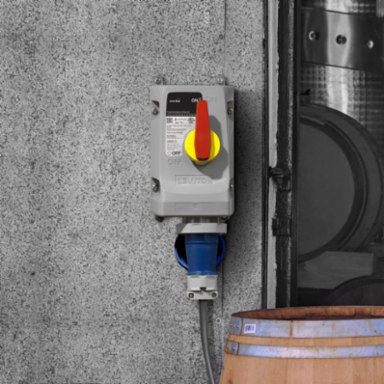

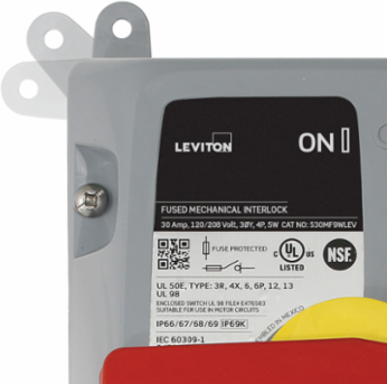

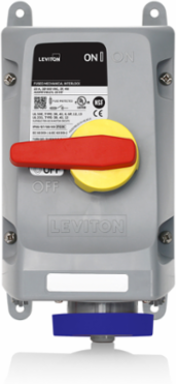

Leviton 420MF9WLEV LEV Series IEC Pin & Sleeve Mechanical Interlock
- MPN: 420MF9WLEV
- UPC: 078477676080
- PPN: LEV-420MF9WLEV
CAD
$2629.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

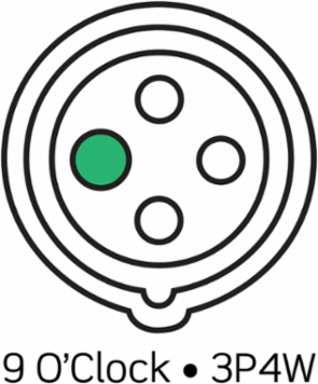

20 Amp, 240 Volt 3-Phase, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Mechanical Interlock, Industrial Grade, IP66/IP67/IP68/IP69/IP69K, Watertight, Fused - Blue
Features
- LEV Series IEC Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:
- Bottom hinged cover design makes installation and maintenance quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
- NSF certified sanitary design trusted for use in food & beverage facilities LEV Series Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Contact Material
- Nickel-Plated Brass
- Handle Material
- PBT+PC with TPE Overmold
- Housing Screws
- 303 Stainless Steel
Gasket MaterialChloroprene
Housing MaterialPBT+PC
Mechanical Specifications
- Cold Impact
- 5 ft-lb impact at -31°F for 3 hrs per UL746C
- Mold Stress Relief
- 70°C for 7 hours without deformation
Crush Test100 lbs for 1 minute per surface
Product Features
- Color
- Blue
- Device Type
- Fused Mechanical Interlock
ConfigurationNorth American
SeriesLEV Series
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- IP Rating
- IP66, IP67, IP68, IP69, IP69K
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
- UV Resistance
- UV stabilized F1 rated enclosure
Gasket Aging70°C for 168 hr per UL50E
NEMA Rating3R, 4X, 12
Operating Temperature-40°C to 75°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- 2200V for 1 minute
- Horsepower Rating
- 7.5 HP
- Pole
- 3
- Voltage
- 240 VAC
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance6,000 cycles under load
Phase3-Phase
SCCR200kA
Wire4
Standards & Certifications
- CSA
- C22.2 No 94.1-07
- UL
- UL1682, UL1686, UL50, UL50E, UL60947-4-1, UL60947-1, UL746
IEC RatingIEC 60309-1, 60309-2, 60309-4
