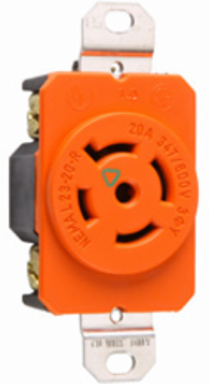

Pass & Seymour IGL2320R 20A NEMA L2320 Single Receptacle, 347/480V, Isolated Ground, Orange

20A NEMA L2320 Single Receptacle, 347/480V, Isolated Ground, Orange
  • MPN: IGL2320R
  • UPC: 785007232103
  • PPN: P-S-IGL2320R

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$127.77/ EA

Description

Turnlok® Single 4-Wire 20A 3-Phase 347/480V Isolated Ground

Features

  • UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
  • 140 joules of energy absorption in each of the three modes.
  • 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
  • 1 filtering capacitor for 7 to 1 average noise reduction.
  • Nominal let-through (suppressed) voltage inall 3 modes, 500V.
  • LED indicator light.
  • Response time less than 1 nanosecond for unmounted MOV.
  • Overcurrent protection in all 3 modes.
  • Electronic components potted for electrical, mechanical and thermal stability.
  • Thermal protection in all 3 modes.
  • Leakage current: 0.5 mA at 25: C/120VAC.
  • 3 18mm super MOVs to suppress transients in all modes : equally.
  • Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
  • Varistor voltage: 150V RMS. Back and side wire capability including ground terminal.
  • Operating temperature: -40: C to 85: C(-40: F to 185: F)
  • Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.

Specifications

Specifications

Depth
1.19 in
Height
2.29 in
Width
1.61 in
ColorOrange
Product LinePass & Seymour
Country of OriginMexico
