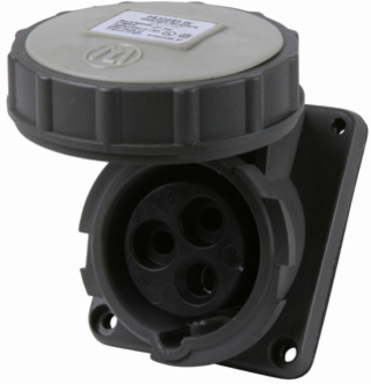

Pass & Seymour PS320R5W Watertight Pin & Sleeve Receptacle 20A 277V, 3.4 Inch Height, 2.85 Inch Width
Pass & Seymour PS320R5W Watertight Pin & Sleeve Receptacle 20A 277V, 3.4 Inch Height, 2.85 Inch Width
- MPN: PS320R5W
- UPC: 785007320596
- PPN: P-S-PS320R5W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$220.31/ EA
Description
Double-Pole, 3-Wire, Pin and Sleeve Receptacle. 20A, 277V.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Specifications
Specifications
- Height
- 3.4 in
- Length
- 3.4 in
- Product Line
- Pass & Seymour
- Country of Origin
- United States
- Standard
- UL Listed
- Number of Poles
- Double Pole
- Special Features
- Impact, chemical resistant, non conductive retaining screw, brass male/female contacts
ColorGray
Width2.85 in
Amperage20.0 A
Voltage277.0 V
Number of Wires3.0
Application SectorIndustrial
