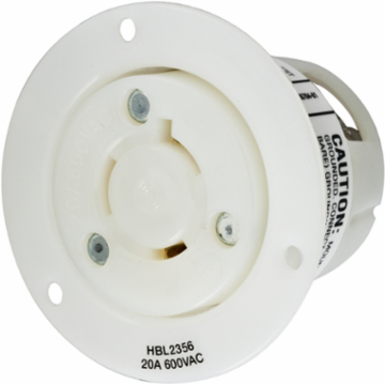

Hubbell Wiring Device-Kellems HBL2356 Insulgrip Flanged Receptacle 20A 600V AC 2-Pole 3-Wire Grounding
- MPN: HBL2356
- UPC: 783585038070
- PPN: HBL-HBL2356
- UNSPSC: 39121406
CAD
$65.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 600V AC, 2-Pole 3-Wire Grounding, NEMA L9-20R, Screw Terminal, Nylon casing, Back wired, White.
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 2.88 in x 2.88 in x 2.09 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Environmental - Terminal Identification - Terminals identified in accordance with UL 498;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. |
| Amperage Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | L9-20R |
| Number of Wires | 3-Wire |
| Size | 2.88 in x 2.88 in x 2.09 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Voltage Rating | 600 VAC |
| Voltage Rating Description | 600 VAC |
| Width | 2.88 in |
| General Literature Asset 1 Display Text | Insulgrip® Straight Blade and Twist-Lock® Devices |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Description - Invoice | LKG FLG-RCPT, 20A 600V, L9-20R, WH |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Sub Class Code | A08A110 |
| Current Rating | 20 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.100 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 8.300 lb. |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 20 A |
|---|---|
| Height | 2.09 in |
| Length | 2.88 in |
| Standards - RoHS Compliance Status | CM |
| Application | Insulgrip |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Standard |
| Type | Flanged Receptacle |
| Wire Size | #16 AWG to #8 AWG |
| Weight | 0.3 lb. |
| Engineering Drawing 1 Display Text | HBL2356 AutoCAD Drawing |
| Connectivity | Back Wired Screw Terminals |
| Nema Rating | L9-20R |
| Number Of Wires | 3-Wire |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 2356 |
| Material - Mounting Hardware | Screw Mounting |
| Material | Nylon |
| BOX SIZE | 6.900x14.200x10.600 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585038070 |
| Case - Total Units | 30 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
