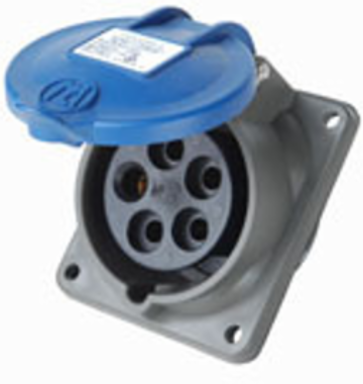

Pass & Seymour PS520R9S Pin & Sleeve Splashproof Receptacle 20A 3ØY 120/208V, 2.5 Inch Width
Pass & Seymour PS520R9S Pin & Sleeve Splashproof Receptacle 20A 3ØY 120/208V, 2.5 Inch Width
- MPN: PS520R9S
- UPC: 785007520248
- PPN: P-S-PS520R9S
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$293.72/ EA
Description
4-Pole, 5-Wire, Pin and Sleeve Receptacle. 20A, 3Y, 120/208V.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Specifications
Specifications
- Height
- 3.1 in
- Length
- 3.17 in
- Product Line
- Pass & Seymour
- Amperage
- 20.0 A
- Standard
- UL Listed
- Number of Poles
- 4-Way
- Special Features
- Impact, chemical resistant, non conductive retaining screw, brass male/female contacts
ColorGray
Width2.5 in
Country of OriginUnited States
Voltage120.0 V
Number of Wires5.0
Application SectorIndustrial
