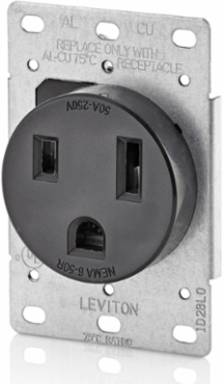

Leviton 5374-S00 50 Amp, 250 Volt, 2P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, Black
Leviton 5374-S00 50 Amp, 250 Volt, 2P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, Black
- MPN: 5374-S00
- UPC: 078477695401
- PPN: LEV-5374-S00
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$14.48/ EA
Description
50 Amp, 250 Volt, NEMA 6-50R, 2P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, Side Wired, Steel Strap - Black WARNING: Do not use with single-gang wallboxes, single-gang mud rings or single-gang box extenders
Features
- Built of durable thermoplastic, Leviton Power Receptacles — come equipped with heavy-gauge, double-wire copper alloy contacts. Flush mount receptacles fit Leviton’s wide range of 2.15”-diameter wallplates and mounting hardware is included.
Specifications
Standards and Certifications
- ANSI
- C73
- File
- E13399
- NOM
- NOM - ANCE
- Warranty
- 10-Year Limited
CSA22.2 No 42, C22.2 No.14, C22.2 No.65
NEMAWD-6
ULUL 498, UL 486E
Material Specifications
- Body Material
- Polypropylene
- Face Material
- Polypropylene
- Strap Material
- Galvanized Steel
ColorBlack
Line ContactsBrass Double-Wipe
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass screws = Hot; Green screw = Ground
Terminal Accom.#4 AWG
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 3 HP
