Cooper Wiring Devices 1252 Eaton power device receptacle — NEMA Configuration: 6-50R, Certifications: UL Listed, Voltage Rating: 250 V, Amperage Rating: 50 A, Receptacle Type: Two-pole, three-wire, grounding, Color: Black, Mounting Method: Surface, Nom: CSA Certified, Number Of Poles: Two-pole, Wiring Method: Back and bottom, Allowable Wire Size: #12-4 AWG, Number Of Wires: 3
- MPN: 1252
- UPC: 032664306501
- PPN: COW-WD1252
CAD
$14.84
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

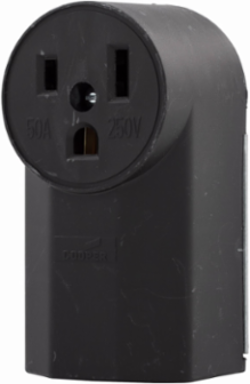

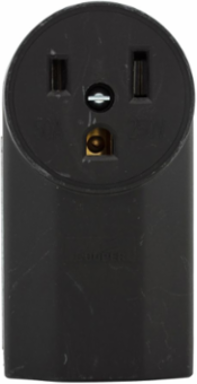

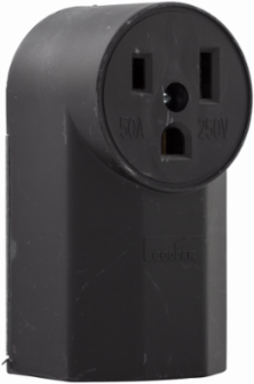

Eaton power device receptacle, #12 - 4 AWG, 50A, Surface, 250V, Back and bottom, Black, NEMA 6-50R, Two-pole, Three-wire, Two-pole, three-wire, grounding, Glass-filled nylon, Power
Specifications
Key Specifications
| Length | 2.25 in |
|---|---|
| Width | 5 in |
| Product Type | Power device receptacle |
| Voltage Rating | 250 V |
| Number Of Wires | 3 |
| Number Of Poles | Two-pole |
| Style | Power |
| NEMA Configuration | 6-50R |
| Design Type | Receptacle |
| Receptacle Type | Two-pole, three-wire, grounding |
| Height | 9 in |
|---|---|
| Weight | 0.685 lbs |
| Amperage Rating | 50 A |
| Wiring Method | Back and bottom |
| Mounting Method | Surface |
| Color | Black |
| Allowable Wire Size | #12-4 AWG |
| Torque Rating | 25 lbf-inch |
| Material | Glass filled nylon |
| Product Series | Power Devices |
