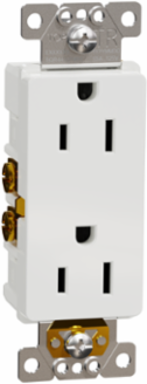

Schneider Electric SQR44101WH X Series Tamper Resistant Duplex Receptacle 15A 125V, White, Flush Mount, cULus
- MPN: SQR44101WH
- UPC: 785901538134
- PPN: SCH-SQR44101WH
CAD
$3.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

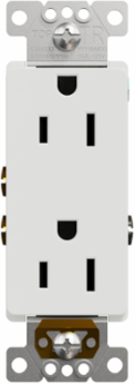

X Series Tamper Resistant Duplex Receptacle 15A 125V, White, Flush Mount, cULus
Features

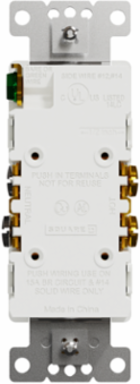

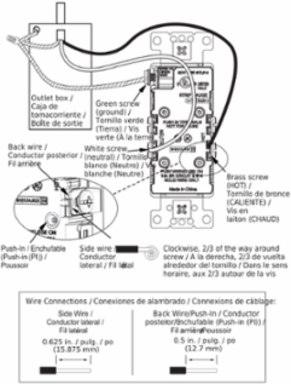

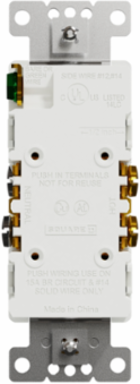

- This X Series receptacle features an advanced "no-wrapping" side wire clamp design and 4 rear push-in terminations optimized for solid AWG 14 copper wires, alongside standard AWG 14...12 screw terminals. This dual-connection layout enables exceptionally rapid loop-through wiring, allowing you to secure your connections cleanly without tedious wire loops and significantly cutting down assembly labor hours.

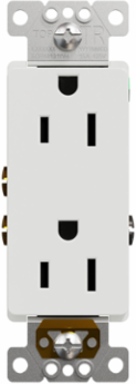

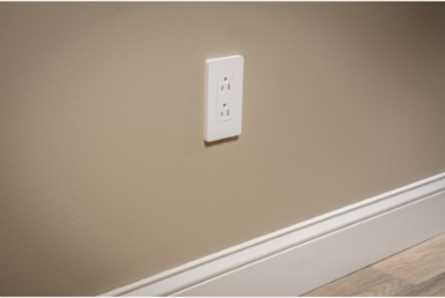

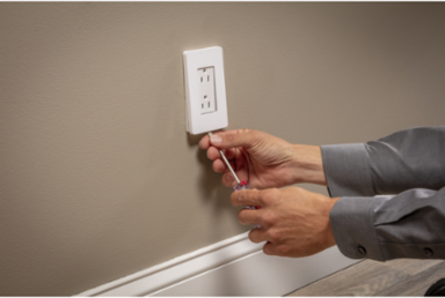

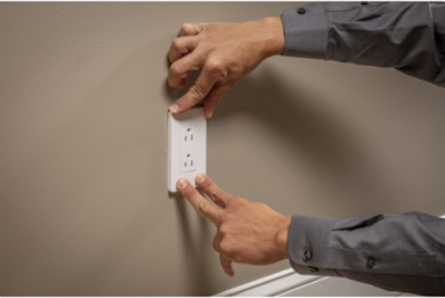

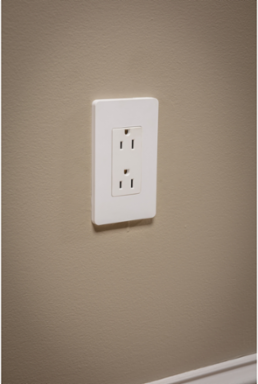

- Featuring a refined decorator profile with a uniform white matte finish, this device eliminates the dated gloss look that highlights wall imperfections and collects finger grease. The modular mechanism sits flush inside the junction box, allowing companion Square D X Series snap-on screwless wall plates to click firmly into place for a modern, hardware-free appearance.
- Engineered to support a standard continuous current of 15 Amps at 125V AC (60 Hz frequency), this NEMA 5-15R rated duplex outlet handles everyday household electrical distribution with ease. The internal structural contacts are forged from premium alloys to resist internal heating and socket looseness over time, providing a reliable power supply for desktop computers, gaming grids, and entertainment gear.
- Bearing full cULus safety listing to the strict UL 498 and NEMA straight-blade operational standards, this receptacle fulfills rigorous residential safety audits. As part of the eco-conscious Green Premium lineup, the plastic frame and strap are entirely free of mercury and hazardous heavy substances, offering a sustainable, code-approved upgrade path for eco-certified home builds.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 27 mm |
|---|
Physical Attributes
| Color | White |
|---|
Important Information Attributes
| Connections - Terminals | phase and neutral 4 screw terminal 14 AWG...12 AWG) copper, phase and neutral 4 push-in termination 14 AWG), solid copperearth 1 screw terminal copper |
|---|---|
| Local Publishable Date | 2026-06-23 |
| Pre Comm Date | 2020-12-18 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Persona Type Ids | LC |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Body Type | decorator |
| Earth Circuit | self earthing |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Modules | 1 |
| Outlet Standard | NEMA |
| Product Or Component Type | socket-outlet |
| Range | Square D X Series |
| Socket Additional Information | tamper resistant |
| Surface Finish | Matte |
| Targeted Channel | distributor |
| Width Nominal | 36 mm |
| [Ie] Rated Operational Current Ac | 15 A |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536698000 |
| Local Data Status | Publishable |
|---|---|
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Persona Type Names | Contractor |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Aesthetic Name | X Series |
| Device Application | power supply |
| Energy Efficiency Optimized | False |

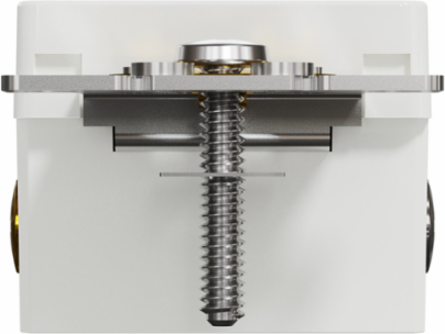

| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Outlet Poles Configuration | 2P + E |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Socket Number | 2 |
| Sustainable Packaging | Yes |
| Height Nominal | 103 mm |
| Certificate Agency | cULus |
| [Ue] Rated Operational Voltage | 125 V |
| Package Weight(Lbs) | 96 g |
| Warranty (In Months) | 24 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | socket-outlet |
|---|
ETIM
| ETIM 8 | EC000125 |
|---|
| ETIM 9 | EC000125 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
