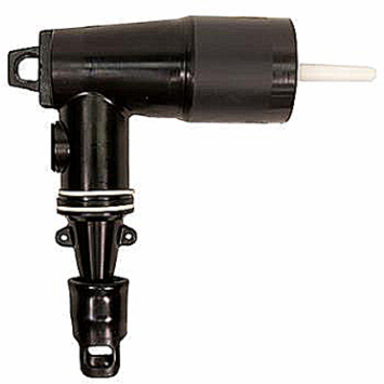

Thomas & Betts 261LRJS-E5240 Loadbreak Elbow Connector and Jacket Seal
- MPN: 261LRJS-E5240
- UPC: 075114312165
- PPN: T-B-261LRJS-E5240
CAD
$252.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25/28kV, 200 Amps, Loadbreak Elbow, Built in Jacket Seal, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Compression Lug, Conductor Size 1/0 Stranded/Compressed, 2/0 Solid/Compact. No Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installion Instruction Sheet and Crimp Chart.
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 10.5x19.12x12.5 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | 25/28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in Jacket Seal. |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | Conductor Size 1/0 Stranded/Compressed |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 25/28kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Loadbreak Elbow Connector and Jacket Seal |
| Application | 25/28 kV, 200 Amp |
| Size | 11.47 inch End to Center of Installation Eye X 4.13 inch End to Bushing Datum, 2.87 inch Diameter |
| Number Of Conductors | 2/0 Solid/Compact. |
| Color | Black |
| Amperage Rating | 200 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
| Consist Of | 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet |
