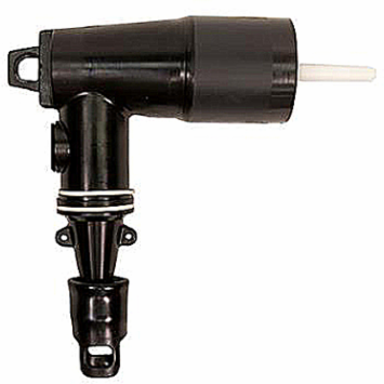

Thomas & Betts 261LRJS-E5270 Loadbreak Elbow Connector and Jacket Seal
- MPN: 261LRJS-E5270
- UPC: 007511431217
- PPN: T-B-261LRJS-E5270
CAD
$257.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25/28kV, 200 Amps, Loadbreak Elbow, Built in Jacket Seal, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Compression Lug, Conductor Size 4/0 Stranded/Compressed, 250 Solid/Compact. No Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installion Instruction Sheet and Crimp Chart.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 25/28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in Jacket Seal.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size 4/0 Stranded/Compressed
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 25/28kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector and Jacket Seal
Application25/28 kV, 200 Amp
Size11.47 inch End to Center of Installation Eye X 4.13 inch End to Bushing Datum, 2.87 inch Diameter
Number Of Conductors250 Solid/Compact.
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist Of1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
