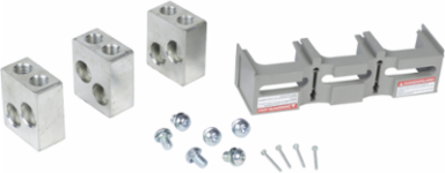

Square D AL800P6K PowerPacT Mechanical Lug Kit, 800A, 3/0 AWG to 600 kcmil, Aluminum
- MPN: AL800P6K
- UPC: 785901409533
- PPN: SCH-AL800P6K
CAD
$855.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT M and P circuit breakers. These aluminum lugs are rated for 800A. The lugs accept 3/0 AWG to 600kcmil aluminum and copper conductors. These lugs comply with UL and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Complementary Attributes
- Line Rated Current
- 800-1200 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Location Of Connection
- downstream, upstream
- Range Of Product
- PowerPact M, PowerPact P
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 3
- Sustainable Packaging
- Yes
- Accessory / Separate Part Category
- connection accessory
- Package Weight(Lbs)
- 1.089 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Modeunit mount, I-Line
Certificate AgencyCSA, UL
Local Publishable Date2026-04-10
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge3/0 AWG...600 kcmil aluminium/copper
Materialaluminium
Product Or Component Typemechanical lug
ReturnabilityYes
Tightening Torque50-50 N.m 95-300 mm² (3/0 AWG...600 kcmil)
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- PowerPact M, PowerPact P
Product Or Component Typemechanical lug
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
