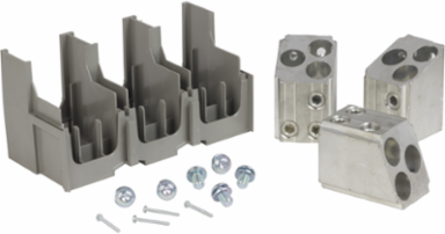

Square D AL1200P6KU4 PowerPact P Mechanical Lug Kit, 1200A, AWG 3/0 to 600 kcmil
- MPN: AL1200P6KU4
- UPC: 785901654728
- PPN: SCH-AL1200P6KU4
CAD
$2079.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This lug kit is a connector accessory for PowerPact P-Frame circuit breakers. This is an aluminum lug kit for unit mounted circuit breakers. This accessory has a rated current of 1200 amps. The lug kit are for terminal connection and will accept a wire size of AWG 3/0 with a 600 kcmil. This product complies with UL and CSA standards. This lug can be used only on standard circuit breakers. This lug has a tightening torque of 50-50 Nm, with a cable cross section of 95-300 mm².
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Kcmil Size
- 600 kcmil
Complementary Attributes
- Line Rated Current
- 1200-1200 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Location Of Connection
- upstream, downstream
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 3/0 AWG...600 kcmil aluminium/copper
- Material
- aluminium
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 4
- Returnability
- Yes
- Tightening Torque
- 50-50 N.m 95-300 mm² (3/0 AWG...600 kcmil)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908585
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL, CSA
Local Publishable Date2025-11-13
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Mounting Modeunit mount
Product Or Component Typemechanical lug
Range Of ProductPowerPact P
Sustainable PackagingNo
Accessory / Separate Part Categoryconnection accessory
Package Weight(Lbs)2.722 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mechanical lug
Range Of ProductPowerPact P
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
