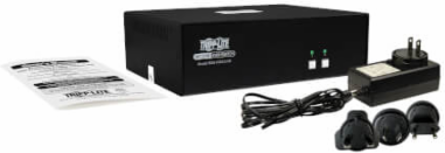

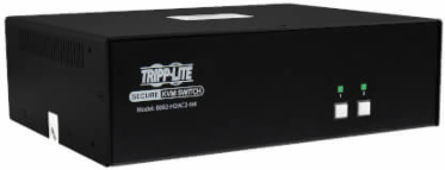

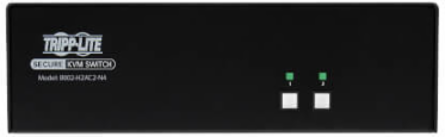

Tripp Lite B002H2AC2N4 Secure KVM Switch, 2-Port, Dual Head, HDMI, 4K 60Hz, NIAP PP4.0, Audio, CAC, TAA
- MPN: B002H2AC2N4
- UPC: 037332274366
- PPN: TRP-B002-H2AC2-N4
CAD
$2519.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Secure KVM Switch, 2-Port, Dual Head, HDMI to HDMI, 4K, NIAP PP4.0, Audio, CAC, TAA
Features
- External power supply with NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 1.3A; Output: 12V 3A); includes 4 interchangeable power supply heads (US, UK, EU, Australia)
Documentation & Downloads
Specifications
Dimensions
- Number of Ports
- 2
- Unit Dimensions
- 2.630 x 8.800 x 6.690 in

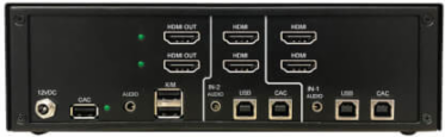

- Side A - Connector 1
- 3.5mm (Female)
- Side A - Connector 3
- (3) USB-A (Female)
- Side B - Connector 2
- (4) HDMI (Female)
- PC/Server Connections
- HDMI; USB
- LED Indicators
- (x2) Green / Port Selection / CAC/EDID (Push-Button), (x2) Green / Video Console, (x1) Green / CAC Console
Number of Users1
AC Power Adapter Cord Length5 ft
Side A - Connector 2(2) HDMI (Female)
Side B - Connector 1(2) 3.5mm (Female)
Side B - Connector 3(4) USB-B (Female)
Port SelectionPushbutton
Material
- Color
- Black
Material of ConstructionMetal
Compliance
- Product Warranty Period
- 3-year limited warranty
Reference
- Technology
- HDMI
AC Power Adapter PlugAS/NZS 3112 Australia; BS 1363 UK; CEE 7/7 Schuko; NEMA 1-15P North America
Performance
- Max Supported Video Resolution
- 3840 x 2160 @ 60Hz
- Chroma Sub Sampling
- 4:4:4
- AC Power Adapter Input
- 100-240V / 50/60Hz / 1.3A
- Power Source Type
- AC Adapter
- Storage Temperature Range
- 4° to 140°F (-20° to 60°C)
Max Supported Color Depth36-bit Deep Color
USB SpecificationUSB 1.1 (up to 12 Mbps); USB 2.0 (up to 480 Mbps)
AC Power Adapter Output12V / 3A
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative Humidity0-80% non-condensing
