Tripp Lite B006HD2UA2 KVM Switch, 2-Port, HDMI Dual-Display, USB 3.2 Gen 1, 4K 60 Hz, HDCP 2.2, TAA
- MPN: B006HD2UA2
- UPC: 037332265944
- PPN: TRP-B006-HD2UA2
CAD
$944.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2-Port HDMI Dual-Display KVM Switch - 4K 60 Hz, USB 3.2 Gen 1, HDCP 2.2, USB Sharing, TAA
Features

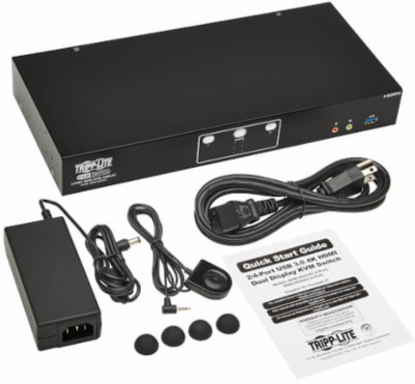

- Remote port selector included
- External power supply included (Input: 100-240V, 50/60 Hz, 1.2A; Output: 12V, 3.33A)
- Includes (4) rubber foot pads
Documentation & Downloads
Specifications
Dimensions
- Max CPU
- 2
- Number of Users
- 1
- Unit Weight
- 3.52 lb
- Computer/Server Ports
- HDMI, USB, 3.5mm Audio Jack (Audio), 3.5mm Audio Jack (Mic)
- Side A - Connector 2
- (2) USB B (Female)
- Side B - Connector 1
- (2) HDMI (Female)
- Side B - Connector 3
- (4) 3.5mm (Female)
- Port Selection
- Hotkey; Mouse; Pushbutton; Remote Selector
- Daisy-chainable or Cascadable
- Daisy chainable
Max Number of Ports4
Unit Dimensions13.189 x 1.732 x 6.060 in
PC/Server ConnectionsHDMI
Side A - Connector 1(4) HDMI (Female)
Side A - Connector 3(4) 3.5mm (Female)
Side B - Connector 2(4) USB A (Female)
Side B - Connector 4RJ45 (Female)
Port ControlPush Buttons, Hotkeys, OSD Mouse Switching
LED IndicatorsSolid White (Current KVM/Audio/USB Link); Half-lit White (Connected); Dimmed White (Connected but not focused)
Material
- Color
- Black
Material of ConstructionMetal
Compliance
- Recommended Category Cable
- Cat6/6a
Reference
- Product Warranty Period
- 3-year limited warranty
Performance
- Max Supported Video Resolution
- 4K UHD @ 60Hz (3840 x 2160); 4K DCI @ 60Hz (4096 x 2160)
- Audio Specification
- 2.1 Surround Sound
- USB Specification
- USB 3.2 Gen 1 (up to 5 Gbps)
- Power Consumption
- 3.17 W
- AC Power Adapter Output
- 12V / 3.33A
- Operating Temperature Range
- 32° to 122°F (0° to 50°C)
- Relative Humidity
- 0-80% non-condensing
TechnologyHDMI; Stereo Audio; USB 2.0 (High Speed)
HDCP Specification2.2
Extended ModeYes
AC Power Adapter Input100-240V / 50/60Hz / 1.2A
AC Power Adapter PlugIEC-320-C14
Storage Temperature Range-4° to 140°F (-20° to 60°C)
