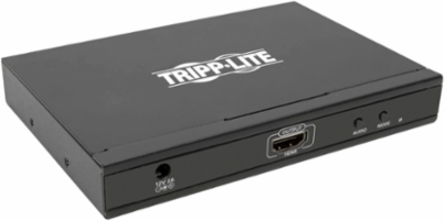

Tripp Lite B119-4X1-MV 4x1 HDMI Matrix Switch with Remote Control - 1080p @ 60 Hz (HDMI 4xF/1xF)
Tripp Lite B119-4X1-MV 4x1 HDMI Matrix Switch with Remote Control - 1080p @ 60 Hz (HDMI 4xF/1xF)
- MPN: B119-4X1-MV
- UPC: 037332213990
- PPN: TRP-B119-4X1-MV
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$391.03/ EA
Description
4x1 HDMI Matrix Switch with Remote Control - 1080p @ 60 Hz (HDMI 4xF/1xF)
Features
- Can display video from one, two or all four HDMI sources at the same time

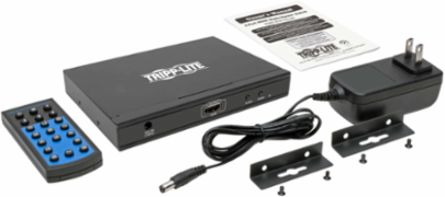

- Included remote control allows you to toggle between display modes with ease
- Transmits high-definition picture quality at 1080p video resolutions @ 60 Hz
- Audio switches independently, so you can watch one video source and hear another
- Plug-and-play operation with no software required for easy, immediate installation
- 2-year limited warranty
- HDMI Quad-Screen Multi-Viewer Connects 4 Audio/Video Sources to One HDMI Display
- Recommended for Home Theaters, Digital Signage and Other Audio/Video Applications
- Choose from Quad, Dual or Full-Screen Mode at the Click of a Button
- Transmits Crystal-Clear Video up to 1080p for High-Definition Presentations
- Ready to Use Right from the Package, So You Can Plug and Play Immediately
Specifications
Features & Specifications
- Port Selection
- Pushbutton; Remote Selector
- HDMI Specification
- 1.3
- Audio Specification
- PCM
- Technology
- HDMI
Max Supported Video Resolution1920 x 1080 @60Hz
HDCP Specification1.2
Driver RequiredNo
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 4
- Side B - Connector 1
- (4) HDMI (FEMALE)
Side A - Connector 1HDMI (FEMALE)
Physical
- Color
- Black
- Unit Dimensions (hwd / in.)
- 5.85 x 4.07 x 0.84
- Unit Weight (lbs.)
- 0.75
Material of ConstructionIron Alloy
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- (x1) Power (Red), (x4) HDMI Input (Blue)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 12V, 2A
- External Power Supply Cord Length (m.)
- 1.2
- External Power Supply Plug(s)
- AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
External Power Supply Input Specs (V / Hz / A)100-240V, 50/60Hz, 0.6A
External Power Supply Cord Length (ft.)4
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
External Power Supply CertificationsCE; UL; cUL
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 20% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 10
Storage Temperature Range-4 to 140 F (-20 to 60 C)
BTUs34.12 BTU/Hr
Overview
- UPC Code
- 037332213990
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
